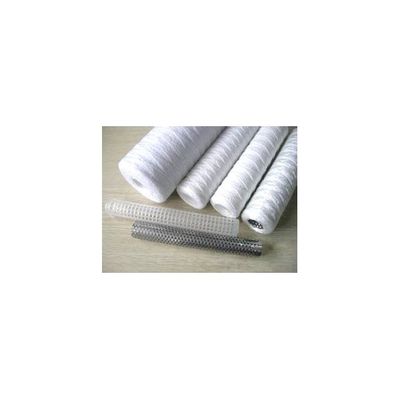

Suzhou-KosaYarn Wound String Filter Cartridges

SHARE

Yarn wound string Cartridge Filter are made of c hosen quality materials by special winding mode. lt is a kind of cartridge structured with the textile fibers winded on the multi-hole frames. The cartridge precision can be controlled by the winding density and lowness, the whole layout is characterized by dense and dynamic inside, and loosening outside, so this yarn wound filter cartridge have a good deep-level filtering, high dirt absorption capability and consequently a long service life, the other advantage is a low initial differential pressure and high flow rates.

Most popular related searches
  • Fits all the standard housing
  • Low pressure drop, high dirt holding capacity and long service life
  • Loose outer layers and tight inner layers offers effective depth filtration
  • Various filter media fit with various applications
  • Yarn Material: Polypropylene/Polypropylene washed/Cotton (bleached)/Polyester/Glass Fiber
  • Length: 10/20/30/40/50 inch.250/500/750/1000MM
  • Diameter: Outside: 60/63/110/152mm; Inner Diameter:28/30/70/100mm
  • Fineness rating: O.5/1/5/25/50/75/100/150/200/250/300µm
  • Inner core material: Polypropylene/Stainless steel 304
  • Adapter: Without adapter/Both side DOE with gasket/Double O-ring-adapter 222 and end cap/Double O-ring-adapter 226 and end cap
  • Sealing: NBR/EPDM/Viton
  • Waste water treatment
  • Chemical industry
  • Electroplating industry
  • PCB& Metal finishing
  • Paint and coating industry
  • Pharmaceutical industry
  • Ink industry
