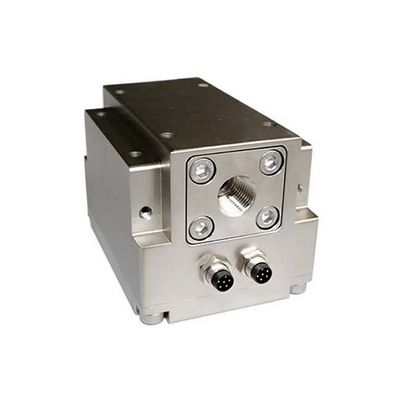

Yateks - Model YPM-1 -Oil Debris Sensor
YPM-1 oil wear debris sensor is a type of online sensor to test the quantity, size, and property of wear debris particles in oil. Most mechanical failures are caused by mechanical wear. The debris particles generated by wear in oil can truly reflect the wear condition of the equipment. Lubricating oil debris reflects the health of the equipment and is also an important basis for diagnosing equipment failures and predicting equipment failures. YPM-1 oil wear debris sensor adopts the advanced three-coil electromagnetic induction principle, integrated with high-precision signal sampling and processing unit, and combined with advanced algorithms to achieve real-time detection of ferromagnetic abrasive particles and non-ferromagnetic abrasive particles in the oil circuit.
- The full range detection rate is not less than 80%;
- The outer casing is made of aluminum alloy, the surface is hard oxidized, the structure is light, the chemical corrosion resistance and pressure resistance are excellent, and the measurement is less affected by external vibration, which is suitable for on-line monitoring requirements;
- Small structure, easy system integration, on-site calibration of integrated modules;
- Both RS485 output and 4-20mA output are available.
- Comply with CE, ASTM1657 and other certification and testing standards.
Aircraft Engines, aircraft Gearboxes,wind Turbines, Aeroderivative Gas Turbines, Aeroderivative Test Stands, Aviation Test Stands, Marine Diesel Engines, Marine Gas Turbines, Marine Propulsors,Marine Test Stands and the oil tank of heavy machine etc.
MODULE : SUBMODULE : YTE-6M-IR SERIES
System :
- Dimension : 315*103*173mm
- Display screen : 3.5” IPS industrial high definition screen with resolution ratio of 640*480
- Control lever : Mechanical rocker with lens able to rotate in 360-degree
- Probe reset : Automatic set
- Functions : Photography, video, brightness control, locking, frame&flip and zoom in/ out
- Audio : 3.5mm integrated headset
- Internal storage : 16G
- Data I/O port : SD card interface, TVOUT signal interface, headset interface, charge interface and USB interface
- Battery : One 18650 Lithium batteries(replaceable)
- Standby time : ≥3 Hours
- Operating Method : Handy portable
- Brightness Control : 6-degree brightness adjustment
Front video probe :
- Probe dimension : 6.0mm±0.1mm
- Total length : 0-3m
- luminance : ≥20,000lux
- Angle of view : 80°
- Angle of bending : 150±10°
- Effective pixels : 450,000 pixels
- Luminous power : E type:≥100mw(10m effective distance observing)
- P type:≥250mw(20m effective distance observing)
- Depth of field (mm) : 50~+∞mm
- Direction of rotation of lens : Mechanical rotation of any direction at 360°
- Material of insert tube : Tungsten wire wear-resistant tube
- Operation system : Real time multitasking operation system
Software :
- User interface : Pull down operation menu
- File management : Support image and video play, delete, format
- Image control : frame& flip, freeze and zoom in/ out
- Image format : JPEG/JPG(record the date and time)
- Video format : AVI(record the date and time)
- Language : English/Chinese/Korean/German/Japanese/
- French/Spanish
Operating environment :
- Operating temperature of main body : -10-50°c
- Operating temperature of probe : -20-50°C
- Relative humidity : Max 90%, No condensation
- IP rating : IP54 for main body
- IP67 for probe
