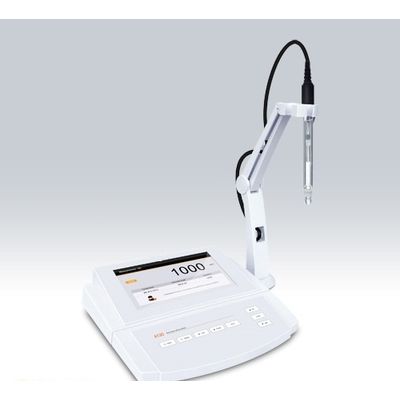

Yatherm - Model YS - A130 -Multi-Parameter Ion Meter with PH/Ion/ORP/ Water Hardness

Yatherm Ion meter comes in benchtop & handheld models with high precision and accuracy. Our all models have five-point calibration from low to high PPM with one ion electrode & one ATC with solutions. Our Instrument has a data storage facility with a USB port data transfer & printer facility.

• The standard benchtop pH/ion meter is designed in a 7 inch TFT display.
• Options Available for pH buffer group (USA/NIST/DIN).
• Self Diagnosis with pH slope.
• ATC provides precise reading over the entire range.
• References of pH to 25°C.
• Indicative alarm when reading range is beyond the limit.

• Designed for one-point calibration.
• Absolute millivolt modes give reliable ORP readings.

• designed with selected ion measurement methods, including direct reading, addition, subtraction, sample addition, and simple subtraction.
• Yatherm Ion meter designed to take readings in ppm, mg/L, mol /L, and mmol/L.
• Designed with 5 points calibration with 8 concentration points.
• Self-detection of the ion-selective electrode.
• Electrode management is capable of storing the 3 slopes and recalling the calibration data of each electrode.
• The calibration report provides the details of the calibration standard and electrode slope.

• Two to five points Calibration from Low to high concentration like 0.001 to 0.01 to 0.1 to 1.0 to 10.0 to 100.0 to 1000 mg/L
• Options for Choosing measurement units according to the Nation (German degree, English degree, French degree, mmol/L  and mg/L) are used for water hardness measurements.

• Calibration Due Alarm.
• Stable reading indicator.
• Auto-Read features senses and locks the measurement endpoint.
• Computer or printer connection facility.
• password protection facility.
• 1000 data storage facility.
• Restore factory setting option available.

pH

• Range: -2.000~20.000 pH
• Accuracy: ±0.002 pH
• Resolution: 0.01/0.001 pH, selectable
• Calibration Points: 1 to 5 points
• pH Buffer Options: USA, NIST, DIN or Custom

mV

• Range: -2000.0~2000.0 mV
• Accuracy: ±0.2 mV
• Resolution: 0.1 mV
• Calibration Points: 1 point
• Measurement Modes: Relative and Absolute mV

Ion

• Range: 0~30000 ppm, mg/L, mol/L (Refer to the range of ISE)
• Accuracy: ±0.5% F.S (Monovalent), ±1% F.S (Divalent)
• Resolution: 0.001/0.01/0.1/1
• Calibration Points: 2 to 5 points
• Calibration Solutions: 0.001/0.01/0.1/1/10/100/1000/10000 ppm, mg/L, mol/L
• Measurement Methods: Direct reading, Known addition, Known subtraction,
• Sample addition, Sample subtraction
• Water Hardness
• Range: 0.05~200 mmol/L, 0~1120°dH, 0~1404°e, 0~2000°fH
• 0~8000 mg/L (Ca2+), 0~19999 mg/L (CaCO3)
• Accuracy: ±1% F.S
• Resolution: 0.001/0.01/0.1/1
• Calibration Points: 2 to 5 points
• Calibration Solutions: 0.01/0.1/1/10/100 mmol/L
• Measurement Units: °dH, °e, °fH, mg/L, mmol/L
• Temperature
• Range: 0~105°C, 32~221°F
• Accuracy: ±0.5°C
• Resolution: 0.1°C
• Calibration Points: 1 point
• Temperature Units: °C or °F

General

• Temperature Compensation: 0~100°C, 32~212°F, Manual or Automatic
• Data Hold: Manual or Automatic endpoint detection
• Stability Criteria: Standard or High-accuracy
• Calibration Due Alarm: 1 to 31 days
• Interval Readings: 10/30/60 seconds, 10/30 minutes or Off
• Password Protection: Yes
• Reset Function: Yes
• Memory: Stores up to 1000 data sets
• Output: USB communication interface
• Connector: BNC
• Display: 7 inch TFT LCD
• Power Requirements: DC 12 V, using AC adapter, 220 VAC/50 Hz
• Dimensions: 240(L)×220(W)×80(H)mm
• Weight: 1.7 kg
