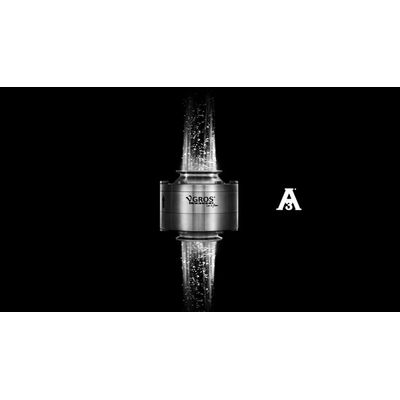

Ygros - Model EDF 3-A -Springless Hygienic Check Valve
The EDF 3-A valve by Ygros is an innovative springless check valve engineered for hygienic applications, particularly tailored for the US market and certified by the 3-A Institute. This advanced valve eliminates the need for traditional springs with a patented magnetic system, ensuring maximum hygiene and zero maintenance. It guarantees tightness in all installation positions, including vertical downward flows. Suitable for a range of fluids and steam, it withstands temperatures up to 220°C, making it ideal for pharmaceutical, chemical, cosmetics, and food & beverage industries. The valve`s construction includes stainless steel 1.4404 (AISI 316L) body and flanges, and a Duplex 1.4410 (F53) shutter. Non-product contact materials feature neodymium magnets, with seals optionally made from EPDM, VMQ (Silicone), or FKM (Viton).
Surface finishes range from standard Ra µm ≤ 0.8 to electropolished and passivated options up to Ra µm ≤ 0.4. It supports various end connections, including DIN 11850/ASME BPE welding and ASME BPE Tri-Clamp. Operating within a temperature range of -40°C to +150°C (standard) and up to +220°C (optional) with a standard operating pressure of PN16, the EDF 3-A valve is expertly designed for liquid, gas, and steam media, with complete traceability and optional certifications including EN10204:2005 – 3.1, FDA, 3-A, ATEX, PED, and EC 1935/2004.
Specially designed for the US market and officially approved by the 3-A Institute.
Maximum hygiene with no maintenance required. Tightness guaranteed in all installation positions, even vertical with downward flow.
The patented YGROS technology sets new standards in the plant engineering world, thanks to its magnetic principle that replaces the function of the traditional spring. Suitable for fluids and steam.
Resistant up to 220°C.
The ideal solution for applications in pharmaceutical, chemical, cosmetics and food & beverage industries.
- Maximum hygiene : Only the shutter comes into contact with the product. There are no springs, discs or other components which could contaminate it, this means no contamination and no stagnation point
- Safe closing: ensured by patented magnetic principle
- Any installation position possible: it can be installed in horizontal, vertical up and down positions.
- Energy saving: its innovative working principle and design allow for a smooth flow, minimising pressure drop.
- Laminar flow: No turbulences
- Maintenance free
- Longer valve life: thanks to high chemical resistance of the materials
