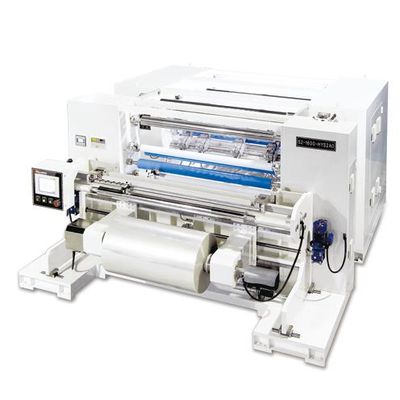

Yicheen - Model S2 -Slitting Machine

SHARE

Feature : Design for slitting system using on the optical film, equipped with full servo system, auto tension control system, EPC system and shaftless unwind mechanism. Equipped with different slit razor in accordance with different type of material, high performance, high yield rate, PLC & HMI computer operation system, provide high standard slitting equipment for film.

  • Optical film, Composite film materiaL.etc
  • Parent web width 1000~1600mm
  • Parent web diameter: 500- 1000mm {shaft-less unwind stand)
  • Material thickness: 15~500u
  • Rewind web: 0500mm
  • Min. Slit width: 50mm
  • Machine speed: Max.30M/min(for60Hz)

Specifications are subject to change without notice for design improvement The specification can be designed by customers demand.
