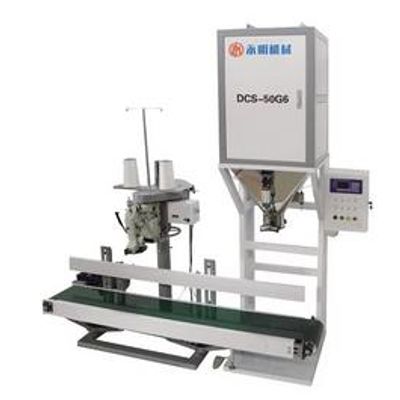

Yongming - Electronic Quantitative Grain Weigher
The device is an automatic quantifying, weighing and packaging device. The material is put into weighing box of machine from inlet, when the weight reaches preset amount, the inlet is closed. After the control system receives the signal that bag is prepared, the material is discharged from outlet into the bag. When all the material enters the bag, the control system opens pneumatic valve, transports the bag by the conveyor and brings it to the sewing machine for sewing.
- It is suitable for the quantitative weighing and packaging of granules in rice, seed, sugar-making and food,etc.
Type: Single scale
- High efficiency. It adopts three-speed feeding mode with fast, medium and fast speed;
- High accuracy with high-precision control instrument, auto-error correction, auto-overfault alarm, and parameter settings backup in power failure;
- Wide range of weighing, customized bag-sewing machine with auto package sewing and auto-shearing, innovative optical fiber sensing technology.
- Model Single scale
- Weighing range (kg) 10-50
- Weighing Speed(bag/h) 360-500
- Scale interval (g) 5
- Power 380V 50HZ 1.0kW
- Air supply 0.4-0.6Mpa 1m³/h
- Dimension (mm) 2600
It adopts three-speed feeding mode with fast, medium and fast speed.
The equipment adopts three speed feeding mode of fast, medium and slow with the fast feeding process, high precision and wide materials weighing range.
High accuracy with high-precision control instrument.
High accuracy with high-precision control instrument, auto-error correction, auto-overfault alarm, and parameter settings backup in power failure.
Innovative optical fiber sensing technology.
Bag-sewing machine of wide range of weighing, customized bag-sewing machine with auto package sewing and auto-shearing, innovative optical fiber sensing technology.
