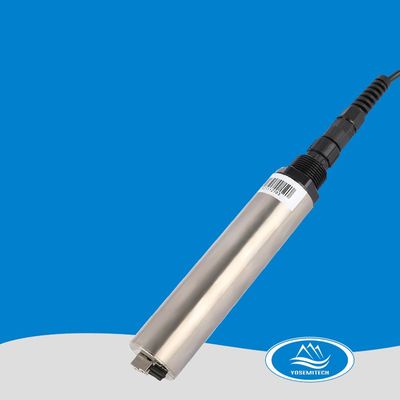

Yosemitech - Model Y511-A -Self-Cleaning Turbidity Sensor
Y511-A on-line turbidity sensor use of 90° scattered light measurement principle, in line with the ISO7027 international standard, custom optical devices, small size, easy installation and maintenance, not easy to be affected by ambient light interference, with better repeatability and stability. Y511-A with automatic cleaning brush, can eliminate the impact of bubbles and contamination on measurement, making Longer maintenance cycle,Long-term online use can also maintain excellent stability.
Most popular related searches
turbidity sensor
contamination monitoring
current sensor
clean construction
custom optical filter
optical filter
temperature sensor
- Digital sensor, RS-485 output, standard Modbus protocol
- 90°Scattering light principle, in line with ISO7027 international standards
- Sapphire optical window, customized filters,Not vulnerable to ambient light and chroma interference
- Excellent repeatability and stability.
Name: Self-cleaning Turbidity Sensor
- Model: Y511-A
- Principle: 90° light scattering method
- Range: 0.1~1000 NTU
- Resolution : 5% or 0.3NTU
- Housing IP Rating: IP68
- Maximum pressure: 3bar
- Temperature range: 0 ~ 50℃
- Sensor interface: Support RS-485，Modbus protocols
- Power Requirements: DC 12~24V, current＜100mA

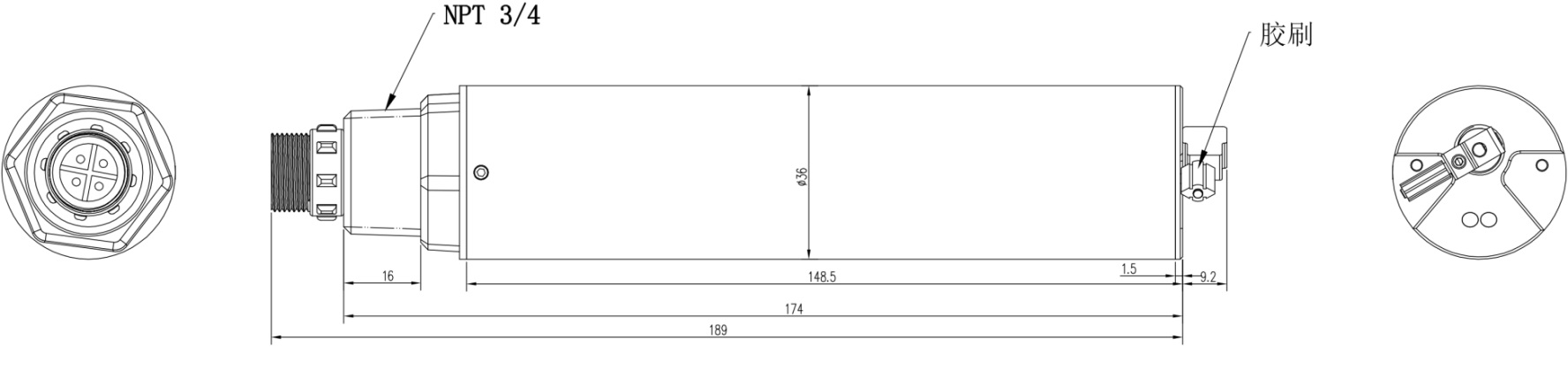

- Sensor Size: Φ36mm*198.2mm
- Self-cleaning: All-in-one self-cleaning brush
- Construction: 3/4 inch NPT
- Probe cable length: 10m (default), customizable
- Sensor material: Ti
- Calibrate: Zero-point，one-point or two-points calibration
