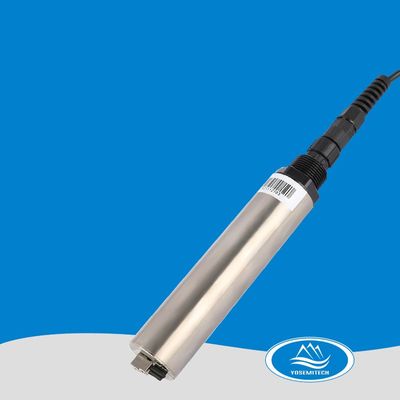

Yosemitech - Model Y514-A -Self-Cleaning Chlorophyll Sensor
Y514-A chlorophyll digital sensor, using leading optical technology,Y514-A has integrated automatic cleaning wiper, witch can effectively reduce biofouling and deliver quality long term monitoring data. With efficient power management, robust design, stable reading, free from frequent maintenance and calibration, Our chlorophyll probes are idea for long term online monitoring use. It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.
Most popular related searches
chlorophyll sensor
drinking water source
chlorophyll
water source
phytoplankton monitoring
marine survey
water quality
drinking water
real-time water quality
chlorophyll A sensor
- Advanced LED fluorescence sensing technology
- With automatic cleaning wiper, effectively eliminate the bubbles and eliminate optical surface biofouling
- Sapphire window, never scratches, durable for field use
- RS485 output, standard Modbus protocol compatible
- On-line continuous monitoring, real-time control of water quality dynamics.
Name: Self-cleaning chlorophyll sensor
- Model: Y514-A
- principle: fluorescence method
- Range: 0~400ug/L or 0~100RFU
- Resolution: 0.01 ug/L
- Accuracy: ±5% or 0.5ug/L (wig）
- Housing IP Rating: IP68
- Maximum pressure: 3 bar
- Temperature Range: 0 ~ 50℃ (No freeze)
- Output: Support RS-485， Modbus protocol
- Power Requirements: DC 12~24V

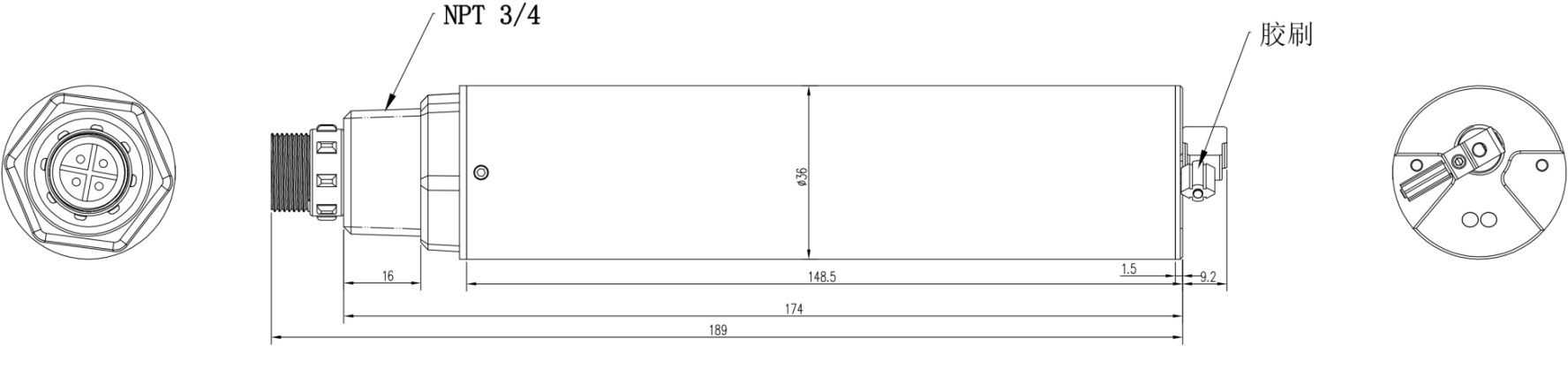

- Sensor size: Φ36mm*198.2mm
- Self-cleaning wiper: Yes
- Cable Length: 10m (default), customizable
- Body materials: Ti
- Calibration: Zero-point、One-point or Two-points Calibration
