Yosemitech - Model Y552-B -Self-Cleaning COD Sensor
Yoesemite‘s Y552-B self-cleaning COD sensor is based on the UV absorption principle, does not need reagents, will not cause pollution, more environmental protection; Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability.
Most popular related searches
- Digital sensors, digital RS-485 output, Modbus protocol;
- Proven UVC LED technology, long lifetime, stable and instant measurement;
- Measurement of parameters such as COD, TOC, turbidity and temperature;
- With self-cleaning brushes to prevent biological adhesion and longer maintenance intervals.
Name: COD Sensor
- Item: Y552-B
- COD Range: 0.5 to 500mg/L equiv.KHP
- COD Accuracy: ±5% equiv.KHP
- COD Resolution: 0.01mg/L
- TOC Range: 0.3 to 200mg/L equiv.KHP
- TOC Accuracy: ±5% equiv.KHP
- TOC Resolution: 0.01mg/L
- Turbidity Range: 0-500 NTU
- Turbidity Accuracy: ±5% or 0.5NTU
- Turbidity Resolution: 0.01NTU
- Temperature Range: 0~50℃
- Housing IP Rating: IP68
- Maximum pressure: 3 bar
- Calibration: One-point or Two-pointsCalibration
- Power: DC 12V -24V,current<50mA (non wiping)
- Output: Support RS-485, Modbus protocol

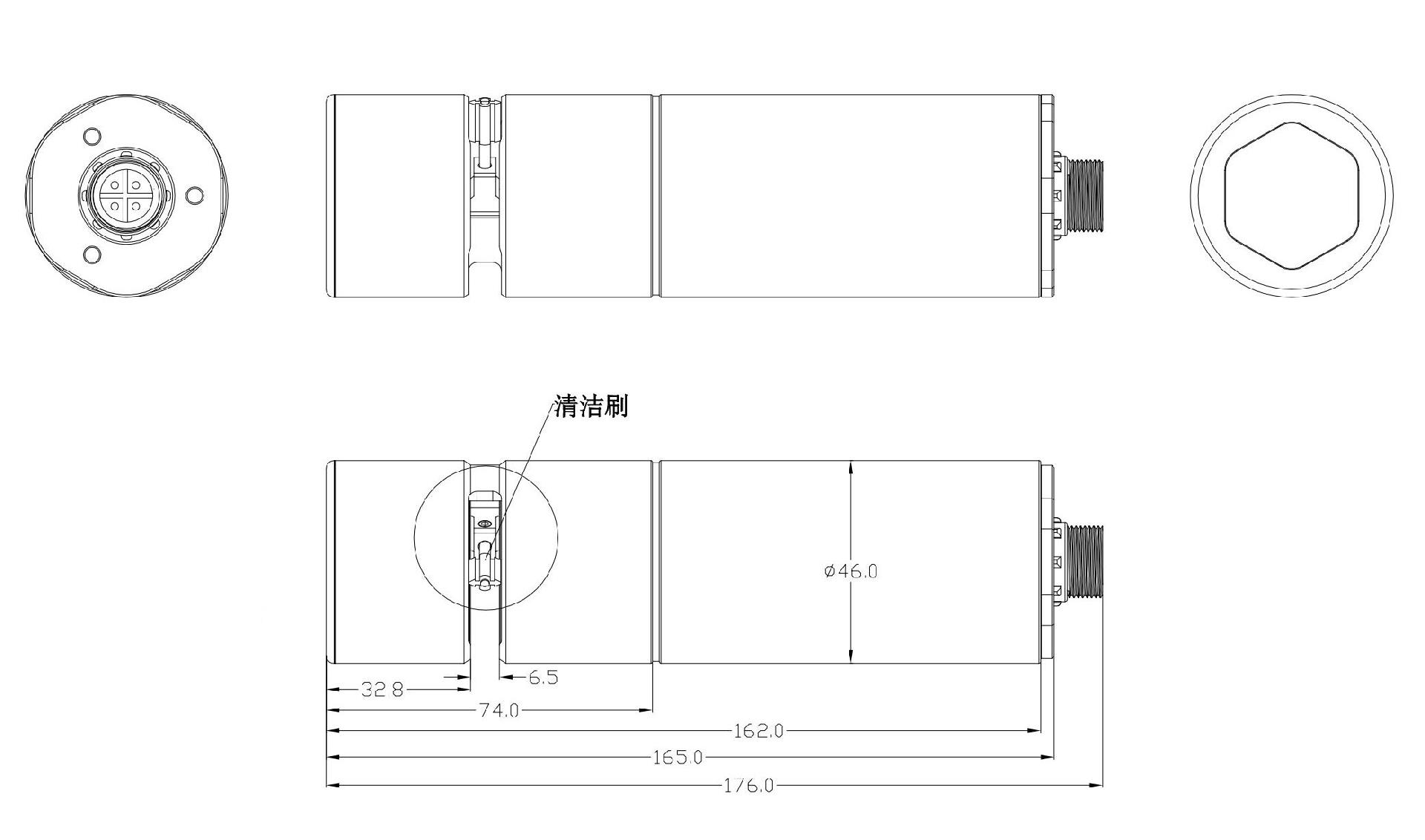

- Size: Φ46mm*176mm
- Cable Length: 10m (default), customizable
- Body materials: 316L(custom titanium available)
