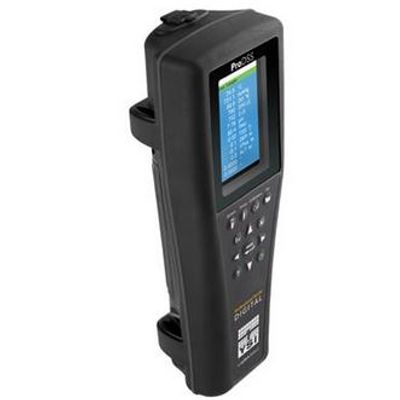

YSI - Model ProDSS -Multiparameter Water Quality Meter
Handheld multiparameter instrument with multiple cable options. The YSI ProDSS (digital sampling system) handheld multiparameter meter provides extreme flexibility with two main cable options. Choose between the fully loaded 4-port cable assembly outfitted with any four DSS sensors (with depth or no depth) or the ODO/CT probe and cable - where you get accurate DO measurements every time with an optical dissolved oxygen sensor with an inline conductivity sensor, allowing for real-time salinity compensation. Want to learn more about the ProDSS? Our online learning program – ProDSS On-Demand Training – is free to use and ensures all trainees are comfortable going into the field with the ProDSS. We hope to see you in class!
What are they all talking about? The YSI ProDSS - digital sampling system
The YSI ProDSS (digital sampling system) is a portable water quality multiparameter instrument for the measurement of several critical parameters - dissolved oxygen (optical), total algae, turbidity, pH, ORP, conductivity, specific conductance, salinity, TDS, resistivity, TSS, ammonium, ammonia, chloride, nitrate, depth (optional), temperature and GPS coordinates.
Designed for use in applications such as surface water, groundwater, coastal/estuarine, aquaculture, and wastewater, the rugged and reliable ProDSS allows for the measurement of water quality parameters with digital sensors. The ProDSS water quality meter uses smart sensor technology that allows sensors to be automatically recognized by the handheld while retaining calibration data.
An easy-to-read backlit color display, large memory capacity, simple calibration procedures, rechargeable battery and powerful data management program (KorDSS) all help to make your sampling experience more convenient.
The optional GPS and depth along with a wide range of cables and sensors (sold separately) allows for complete customization of the ProDSS. Military spec connectors, IP-67 waterproof rating, rubber over-molded case and 1-meter drop tests ensures durability to provide years of sampling even in the harshest field conditions.
Parameters Available:
- Dissolved Oxygen (optical)
- Turbidity
- New! - Total Algae-Phycocyanin
- New! - Total Algae-Phycoerythrin
- Benchtop Yes, optical BOD probe for the lab is available
- Buffer Recognition Yes, auto-buffer recognition for USA (4.00, 7.00, 10.00) and NIST (4.01, 6.86, 9.18) buffer sets. Calibration values are automatically compensated for temperature for both buffer sets.
- Certifications FCC, WEEE, UN Part III Section 38.3 test methods for lithium-ion batteries (class 9), RoHS, Assembled in USA, IP-67, 1-meter drop test, CE
- Connectivity / Communications Built-in micro USB On-The-Go port for PC connection, recharging/powering the ProDSS and connecting directly to a USB stick
- Connector MS (military spec) waterproof with quarter-turn bayonet lock (unsurpassed in regards to durability)
- Data Management KorDSS desktop PC software (included), >100,000 data sets
- Desktop Software Compatible KorDSS desktop PC software (included)
- Digital / Digital Sensors Yes
- Flow Cell Yes, flow cell is available
- GLP Compliance detailed GLP information is stored and is available to view, download or print, Yes
- GPS coordinates are stored with measurement data and site lists, Optional internal GPS
- Graphic Display Color, LCD graphic display, backlit keypad
- Languages Italian, German, Norwegian, English, French, Portuguese, Japanese, Chinese (Simplified & Traditional), Spanish
- Logging Capabilities Single point or Continuous, Yes
- Measurement Method / Channels Digital
- Memory >100,000 data sets, 400 GLP files
- Multiparameter Yes
- Operating Temperature 0 to 50°C (32 to 122°F)
- Parameters Measured Dissolved Oxygen (%), Dissolved Oxygen (mg/L), Temperature, Turbidity, Conductivity, Specific Conductance, Resistivity, Salinity, Water Density, pH, ORP, Ammonium, Nitrate, Chloride, Total Dissolved Solids (TDS), Total Suspended Solids (TSS), Depth, Barometer
- Power Rechargeable lithium-ion battery pack providing ~48 hours of battery life (instrument only with backlight off)
- Sampling Yes
- Security / Password Protection / UserID Yes
- Size
- Instrument: 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.27 in x 8.5 in x 2.21 in)
- Bulkhead with sensors, without depth (no guard): 33.3 cm (13.11 in) length - the length with the ISE sensors is 34.04 cm (13.4 in)
- Bulkhead with sensors, with depth (no guard): 35.84 cm (14.11 in) length - the length with the ISE sensors is 36.58 cm (14.4 in)
- Bulkhead with guard, without depth: 42.82 cm (16.86 in) length and 4.75 cm (1.87 in) outer diameter
- Bulkhead with guard, with depth: 45.36 cm (17.86 in) length and 4.75 cm (1.87 in) outer diameter
- Smart Sensors / Ports 4 universal sensor ports on each cable, can accept any ProDSS sensor, Yes
- Storage Temperature 0 to 45°C (32 to 113°F) with battery installed0 to 60°C (32 to 140°F) without battery installed
- User Calibratable Yes
- User Replaceable Yes
- Warranty 3-year instrument; 2-year bulkhead, cable assembly, and sensors; 1-year pH and pH/ORP sensor modules, ODO (opticalDO) sensor caps, and Li-Ion battery pack; 6-months ammonium, nitrate, and chloride sensor modules
- Waterproof floats, IP-67 (even with the battery cover off)
