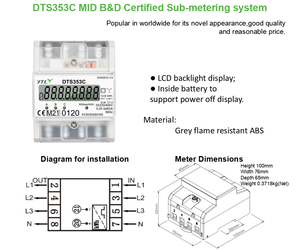

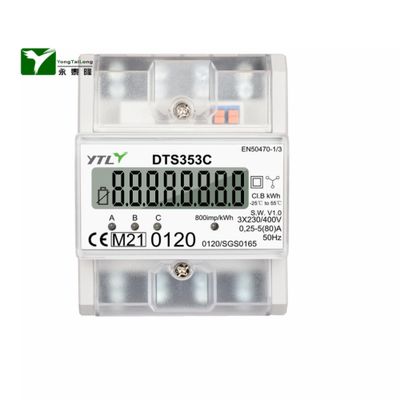

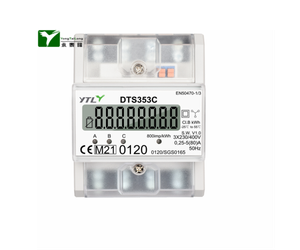

YTL - Model DDS353C -MID B&D Certified Sub-metering system

* LCD backlight display;
* Inside battery to support power off display.

Voltage:3*230/400V
Current:3*5(80)A
Accuracy class:1
Standard:IEC62052-11,IEC62053-21
Frequency:50-60Hz
Impulse constant:800imp/kWh
Display:LCD 6+2
Power consumption:≤2W,10VA
Starting current:0.004lb
Working Temperature:-20～55℃
StorageTemperature:-20～70℃
Working Voltage:0.9-1.1 Rated Voltage
Utmost Voltage:0.8-1.15 Rated Voltage
Average humidity value of year:≤75%
Creep:Less than 1 impulse when the rated voltage  is 115% or current loop without current

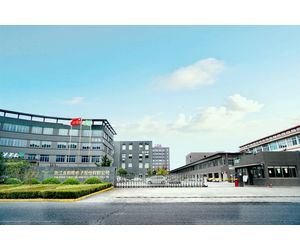

Established in 1995, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities.As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 1995 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
