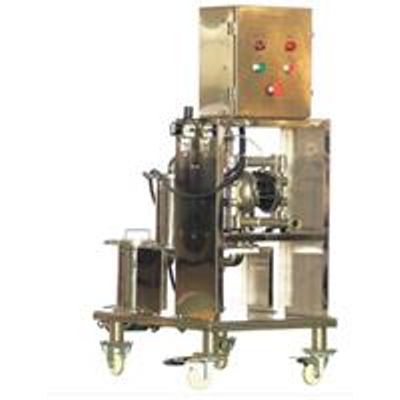

Yushun - Model 1 -Dual Channel Battery Slurry Magnetic Filtering
Dual Filtering Channels: one for using, the other one for spare, which can ensure continuous supply of battery slurry. And the two channels can be switched freely. It is also used for delivering the battery slurry from transferring tank to coating machine, controlling slurry level and filtering iron and impurities.
Most popular related searches
magnetic filter
mesh filter
diaphragm pump
magnetic filter bar
tank coating
iron filter
filter integrity
level controller

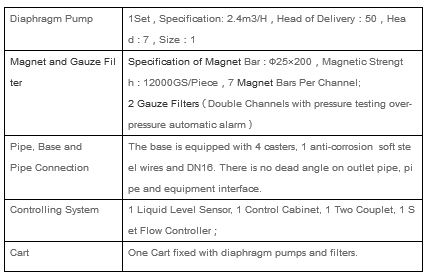

- This system includes
- Diaphragm Pump
- Dual Channel Magnet Filtering: Our magnetic bar has about 30% stronger magnetic than the common one, whose lifetime is longer as its magnetic force decays only 1% for 10 years.
- Dual Channel Filtering: The positive electrode adopts 100-150 mesh filtering, the negative electrode adopts 100-150 mesh filtering, and it is used in parallel. Each mesh filter area is ≥2000cm2.
- The pipeline connected to the transfer tank can be controlled automatically.
- Dual channel filtering and controller are integrated
- Discharging way: The slurry is discharged from the bottom with no material accumulation and no material waste.
