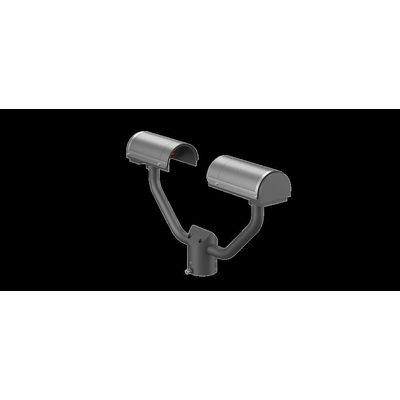

Zata - Model ZDM100 -Disdrometer / Distrometer

Based on the principle of optical laser active detection, the disdrometer can continuously observe the raindrops definition size, velocity and quantity of raindrops

• Monitoring Parameters Rainfall Rate / Precipitation Intensity / Precipitation Type(Code) / Visibility / Partical Size
• Monitoring Principle Infrared Laser
• Power-In DC12/24V / Solar Power
• Interface RS485/RS232/Wifi/BT/LTE

General Data

• Detection Area >60cm­­2
• Partical Size Liquid precipitation particle diameter size 0.2-5mm Solid precipitation particle diameter size 0.2-25mm
• Rainfall Rate 0.2-20 m/s
• Particle Size Distribution 32 level particle diameter size and 32 level descent velocity
• Precipitation Type/Code Drizzle, rain, snow, sleet, hail, etc., can provide the WMO 4688/4677 (SYNOP) 4678 (METAR) and the national code.
• Precipitation Intensity 0.001—1200 mm/h
• Accuracy ±1 Level ( 0.2-2mm)；±0.5 Level (>2mm)
• Rainfall Visibility 10-5000m ±5%
• Radar Reflectivity -9.9-99dBz，±15%
• Interface RS232 / RS485 / SDI 12 / pulse output (0.1 mm) precipitation
• Enclosure Protection Class IP65
• Power
• Power supply mode 9-16VDC，Typical 12VDC
• Power Consumption ＜0.5W
• Environmental Suitability
• Operating Temperature -40℃-80℃
• Operating Humidity 0-100%
• Geographical Adaptability Can be used in coastal areas
