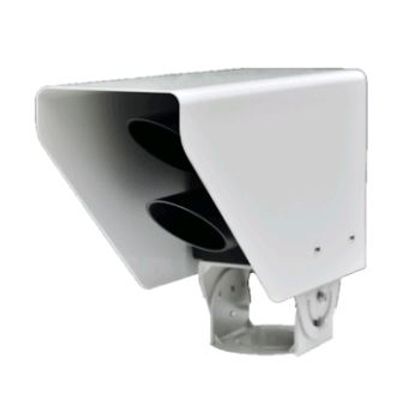

Zata - Model ZRS -Road Sensor / Pavement Sensor
Through the real-time monitoring of ZRS road surface sensor, we can get the information of driving pavement state, including pavement temperature, ice state and so on. ZRS Non-Invasive Road Sensor is designed to monitor traffic and road surface status, which uses remote sensing technology, to avoid damage to the road. Multi-spectral measurement technology makes it possible to accurately detect the road surface ice, snow and water thickness.
Most popular related searches
road sensor
smart city project
remote sensing system
road surface monitor
road surface monitoring
surface sensor
smart city
meteorology monitoring
weather sensor
remote sensing
- Monitoring Parameters Pavement Temperature / Water / Ice / Dry / Snow / Photograph / GPS
- Monitoring Principle Infrared Laser
- Power-In DC12/24V / Solar Power
- Interface RS485/RS232/Wifi/BT/LTE
- General Data
- Measuring Range 2-15M
- Angle 30-90°
- Power Input DC12/24V Solar
- Maximum Power Consumption 2W
- Environment
- Operating Temperature -40ºC - +70ºC
- Operating Humidity 0-100%
- Pavement State Output Water:0 - 2mm
- Ice:0 - 2mm
- Snow:0 - 10mm
- Slippery degree:0.00 - 1
- Accuracy 0.01mm
- Interface RS485/Wifi/LTE/BT/Lora
- Optional Image Acquisition
- Airport Pavement Monitoring
- Highway Meteo Measure System
- Smart City Project
- Maintenance-free
- Non-contact, long life
- Can be used for mobile monitoring
- Can be used for mobile monitoring
- Diversity of power supply
- wireless communication
- Verification of image acquisition
