Zemmler - Model MS 1600-S -Smallest Trommel Screening Machine

FromZemmler Siebanlagen GmbH

SHARE

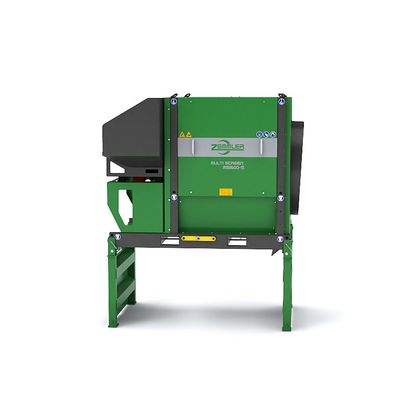

The ZEMMLER® MULTI SCREEN® MS 1600 Starter is the smallest trommel screening machine in this category and was developed especially for small users such as landscapers, construction companies or municipalities. The semi-mobile MS 1600 Starter is an alternative to the mobile MS 1600. The trommel is identically constructed. The low weight and compact design make it easy to transport and use on various construction sites. The MS 1600 Starter is designed to fit trailers up to 2.5 t. With the aid of an optional slip-on ring, the machine can be converted from a two-fraction to a three-fraction screening machine within a few minutes.

Most popular related searches

screening system

trommel screener

stationary trommel screen

construction waste

materials recycling

stationary screen

Capacity
(depending on material)
5 – 30 m³/h

Drive
elektric (connected load 16A)
optional with petrol aggregate (from 7,0 kVA)

Double trommel

Screening surface: 5,2 m² inner trommel, 6,5 m² outer trommel
Outer diameter: 1.300 mm
Trommel length: 1.740 mm/2.640 mm

Wire screens
interchangeable, meshes from 2 to 80 mm
Screen mesh inner trommel: 75×170 mm (standard)

Fractions
2 fractions
optional 3rd fraction via slip-on ring

Feeding hopper
Volume: 1 m³
Loading height: 2.460 mm
Loading length: 2.010 mm

Weight
(depending on equipment)
max. 1.800 kg

Transport dimensions (L x W x H)
2.641 x 2.022 x 2.182 mm

Soil

Sand

Gravel

Stones

Compost

Green cuttings

Recycling material

Woodchips

Construction waste

Substitute fuel

Slag

Coal

Glass

and much more

Chassis
Skid, hook lift, 5t rubber spring axle

Additional equipment

Slip-on ring for 3rd fraction

Special paintwork
Petrol/diesel aggregate
Hopper extension
Remote control
Shear blade
Connectivity options
Rib belt
Chute

and much more
