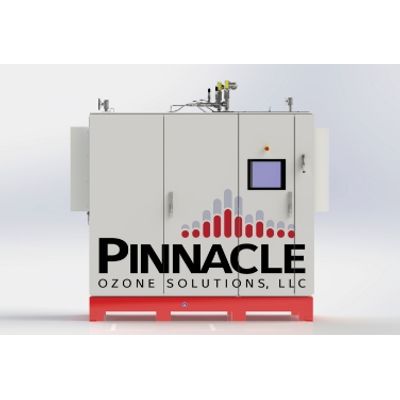

Zenith - Model 20X -Ozone Generator
The Zenith series ozone generator platform is specifically designed for municipal and commercial users requiring high reliability, precise dosing ability, low maintenance, and system redundancy without the need for a spare ozone generation system. The design features of the Zenith platform can provide up to 99.9% operational readiness, with other standard features.
Most popular related searches
ozone generator
ozone generation
ozone generation system
ozone generator system
ozonation
coolant water
ozone system
precision dosing
industrial ozone
ozonator controller
The Zenith series features an excellent turndown capability not seen before in the ozone industry. The ability of the QuadBlock® to linearly control ozone output from 0% – 100% and the Zenith’s ability to isolate each QuadBlock® rack during low demand periods, results in an ozone delivery system with a turndown ration is excess of 100:1.
- 03 OUTPUT: Up to 400 ppd @ 8%, Up to 370 ppd @ 10%
- DIMENSIONS: 111″W x 34.21″D x 94.2″H
- OXYGEN FLOW: Max at 8%, 1100 slpm, Max at 10%: 815 slpm
- COOLANT WATER TEMPERATURE: 50°F/10°C – 75°F/23.9°C
- ELECTRIC SERVICE: 460 VAC/3 PH/50-60 Hz/135 Amps
- POWER CONSUMPTION MAX: 56.5 KW
