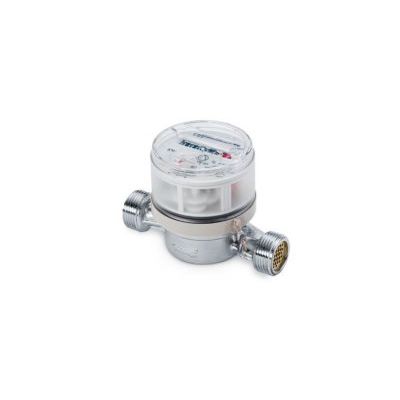

Zenner - Model ETKD and ETWD -Single Jet Dry Dial Water Meter
ETKD/ETWD is a single-jet dry dial water meter for cold and hot water. The counter of the new EKTD has been conceptually newly thought through and technically refined. The result is a counter with a shielded magnetic coupling which delivers virtually perfect results in terms of precision and measuring stability. Thanks to a wide range of technical options, the EKTD is optimally equipped for the future. The EKTD makes a technical leap forward in development with its newly developed modulator disc. This makes possible non-reactive, electronic scanning with a variable resolution and is the basis for remote reading via radio, M bus or pulse module.
Pulse-ready
Both the ETKD 7 reel model with magnetic counter and the 8 reel model with modulator disc provide the option of reading the counter data remotely.
M bus-ready
Using a special add-on M bus module, the ETKD 8 reel counter model with modulator disc can be integrated into an M bus system, in which all counters on a property are connected together and can be read centrally.
Radio-ready
With the addition of an add-on radio module, the ETKD model with modulator disc and 8 reel counter can be read via radio (WM bus as per OMS). A radio module transmits the counter data to a radio modem and these are relayed to a PC or hand-held computer via Bluetooth.
- Dry dial counter with shielded magnetic coupling
- Counter equipped with 8 reels as standard
- Non-reactive scanning for radio, M bus or pulse
- Counter can be turned through 355°
- Pressure stage PN 10
- Body available as copper can version (IP 68)
- Can be installed horizontally or vertically
- Approved by MID
