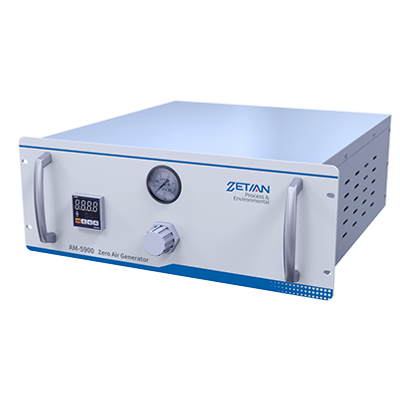

Zetian - Model AM-5900 -Zero Gas Generator
Zero Gas Generator is an instrument that provides clean, dry zero gas. The Zero Gas Generator includes an external oil-free air compressor, pressure flow controller, water removal system, SO2, NO, NO2, O3 and H2S remover, CO and hydrocarbon remover. The Zero Gas Generator is based on adsorption, filtration, reaction and other principles to remove SO2, NO, NO2, O3, H2S, CO, NH3, hydrocarbons and particulate matters in the air, and output dry and clean air. An internal water removal system removes moisture from the air, produces air of which dew point is below -20°C, and is independent of the dew point at the inlet. It is also helpful to remove other gases and greatly prolongs the service life of the chemical remover.
Most popular related searches
zero gas generator
zero gas
oil free air compressor
air quality monitoring system
air quality monitoring
NO/NO2
pressure flow controller
industry air quality
hydrocarbons removal
H2S control
- Adopt three-level water removal system: get rid of water automatically with strong water removal capacity
- Equipped with long-lasting SO2, NO, NO2, O3 and H2S remover and high-efficiency CO and hydrocarbon remover
- Produce dry and clean zero gas with stable flow and pressure. The maximum flow can reach 20L/min and the output pressure can be adjusted
- Simple operation and less daily maintenance
- The external air compressor can realize auto drainage under unattended circumstance
- It is mainly used for zero calibration of environmental air quality monitoring systems and instruments. It can also be used as cleaning gas of penetration furnace or combustion-supporting gas of analyzer equipped with FID.
Pollutant Content:
- SO2:<0.5ppb
- NO :<0.5ppb
- NO2:<0.5ppb
- O3:<0.5ppb
- CO:<0.025ppm
- Organics:<0.02ppm
- Flow output: 20SLPM@30psi
- Dew point: -20℃
- Pump: External, oil-free, long service life
- Dimension: 178mmx430mmx535mm
- Weight: 20kg, external air compressor<22kg (optional)
- Power: 200V~240V, 50/60Hz, 400W
