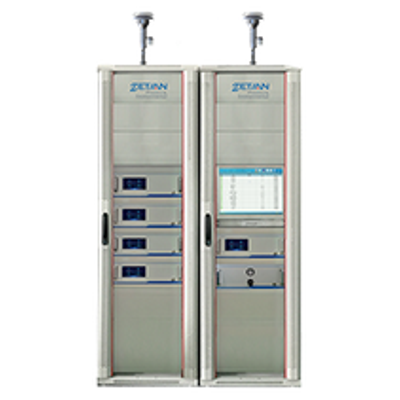

Zetian - Model AM-5 -Air Quality Monitoring System
AM-5 Continuous Automatic Online Monitoring System of Air Quality can real-time monitor the concentration change of general pollution factors in the air including SO2, NOX, O3, CO, particulate matter (PM2.5 and PM10), etc. According to the customer demand, aerosol, VOCs, NH3, halide (HF/HCl) and other special factors can be integrated. Combining with Five Meteorological Parameter Analyzer (temperature, humidity, wind direction, wind speed, air pressure), it can online monitor the environmental continuously for 24 hours and realize regional air quality assessment through data collection, storage and analysis.

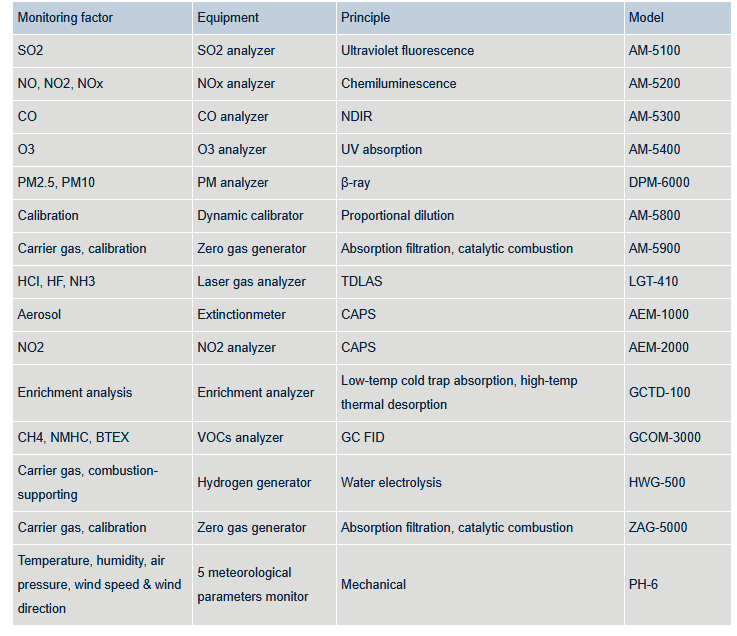

This system is mainly composed by sampling system, analysis instrument, calibration system and data acquisition system. Gaseous pollutant analyzer includes SO2 analyzer, NOX analyzer (chemiluminescence), O3 analyzer, CO analyzer, VOCs analyzer, laser gas (HCl, HF, NH3, etc.) analyzer, NO2 analyzer (CAPS Principle). The particulate matter analyzer consists of PM2.5 analyzer, PM10 analyzer and extinctionmeter (aerosol analyzer).
- Support real-time data display and curve display
- Support historical data query and historical alarm information query
- Support automatic calibration, remote operation and data network transmission
- With functions of data management, information release, remote control, network management, system maintenance, etc.
- Abundant data analysis methods including alarm data statistics, analysis and auto reporting
- Applied to urban air monitoring network, atmospheric monitoring of industrial sites, regional emission monitoring, routine monitoring of air pollution, grey haze monitoring, traffic road monitoring, mobile vehicle monitoring, monitoring in rural and urban areas; laboratory monitoring.
