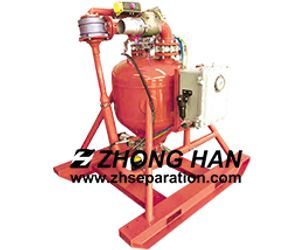

ZhongHan - Model ZH -Pneumatic Vacuum Pump

Pneumatic Vacuum Pump, also called solid transfer pump or drill cuttings transfer pump, is a pneumatic vacuum transfer pump with high load and strong suction. It is a kind of vacuum pump that forms a vacuum through pneumatics for suction, and then converts to a positive pressure for material discharge. It can pump various materials such as solid, powder, liquid and solid-liquid mixture. Its unique structural design and no rotating parts in the cavity enable it to work in the most difficult environment with low maintenance rate. It can transport materials with a solid phase of more than 80% and high specific gravity materials at high speed. It has the following characteristics: the high-efficiency Venturi device can produce up to 25 inches of HG (Hg) under strong airflow, which is equivalent to 85Kpa vacuum to suck the material, and there is almost no wear parts. The pump body is compact in structure, and the delivery distance is as high as 500-1000 meters. It is often used for the transportation of drilling cuttings, oily sludge, tank cleaning, waste suction and long-distance transportation, and mineral and waste transportation. It has a wide range of uses.

Pneumatic Vacuum Pump can transport materials

The materials that can be conveyed by the sludge vacuum pump are: drill cuttings discharged from the vibrating screen; waste mud, drill cuttings, and tailing slurry; cleaning of sludge and oil sludge in the mud pit; cleaning of oil sludge and tailings at the bottom of the tank; materials in bulk tanks and silos Transportation; cleaning of hazardous wastes; solid particles such as sand and fine sand; cleaning of sediments on the bottom of transport ships; mixture of feces and underground sewage pipe networks; diatomaceous earth;

Advantages of Pneumatic Vacuum Pump products

1. Strong self-priming ability, long conveying distance, suction distance of up to 50 meters, discharge distance of up to 500-1000 meters

2. It can be used to convey a wide range of materials, from liquids, mixed liquids, to solids.

3. The maximum particle size of solid materials that can be transported is 50mm or 75mm, and the solid content of the mixed liquid can be transported up to 80%

4. Pneumatic work, no power supply, can meet the requirements of explosion-proof area

5. There are no rotating parts in the cavity, which is not easy to wear and has a long service life

6. Can work automatically and continuously, easy to operate and maintain

7. Compact structure, easy to move
