ZhongHan - Model ZH -Shale Shaker for Mud Recycling System

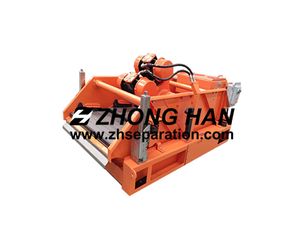

The Shale Shaker is used for the first-level solids control equipment of the drilling mud purification system. It adopts an imported excitation motor and is suitable for single, double or triple oil drilling fluid purification. At the same time, Shale Shaker can also be used for the mud cleaner. For underflow vibrating screen. Shale Shaker has high vibration intensity, large screening area, adjustable screen box angle, compact structure, and excellent performance. Shale Shaker is widely used in petroleum drilling, trenchless horizontal directional crossing, coalbed methane drilling, gas Drilling, river silt environmental protection and other mud purification treatment fields.

The Shale Shaker is the first-class solids control equipment in the drilling mud solids control system, which handles the mud solid phase particles above 74μm from the bottom of the well.

The Shale Shaker is based on the force of the eccentric mass of the vibrating motor to generate linear motion, circular motion or translational elliptical motion trajectory through the transmission of the excitation beam. The angle between the vertical line of the two motors and the screen forms an angle a or a straight line, so that the rotation directions of the two excitation motors are opposite, and the excitation force generated by their mutual movement cancels each other in the X direction, and the excitation force is zero. In the Y direction, the excitation forces of the two motors are superimposed on each other to drive the entire upper and lower screen boxes to reciprocate along the Y axis. At the same time, the mud on the screen surface is thrown up along the Y axis, and then it falls freely. Moving forward, it is continuously thrown up and down to make the mud move forward. The mud liquid leaks into the mud tank through the screen, and the solid particles in the mud that are larger than the screen mesh are screened out, thereby purifying the mud. effect.

If you are interested in our equipments, please visit our web: www.zhseparation.com, send us email: sales@zhseparation.com
