Zhongke - Autoclaved Aerated Concrete Block (AAC) Making Machine
AAC is a kind of light cellular silicate products. Main material based on Silicon materials ( sand, fly ash,gangue contains silicon)and Calcium(cement and lime),mix with foaming agent (Aluminium powder), a fter batching, mixing, pouring,pre-curing,cutting,steam(autoclaved) and other process ,finally, get this light weight concrete products.
- AAC brick size (mm): 600*240/250*70, 600*240/250*450, customized size
- AAC brick dimensions: 600×240/250×(50-450)mm
- Strength level: A3.5Mpa A2.5Mpa A2.0Mpa
- Dry density: B06 grade, B05 grade
- Scope of use: interior wall, exterior wall filling (for non-load-bearing walls)
- Brick Raw Material: Sand, Fly ash, Gypsum, Lump quick lime, Cement, Aluminium Paste,etc.

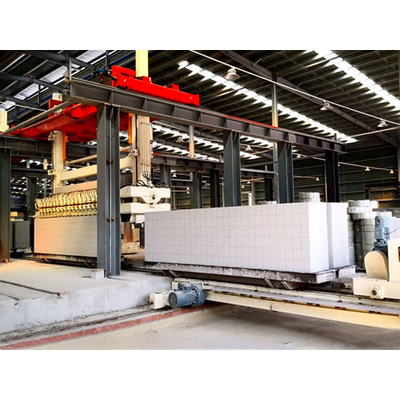

Aerated Autoclaved Concrete block machine (AAC) line:
(1)Material hopper (2)Ball Mill machine (3)Slurry store area (4)Pouring system structure
(5)Material silo (6)Weighing hopper (7)Pouring mixer (8)Frequency conversion pouring ferry car
(9)Mould (10)Reversal hydraulic system (11)Cutting machines (12) Waste material mixer silo
(13)Transport block system (14)Autoclave (15) Pallet reuse system
(16) Packing system (usually no need this parts)
