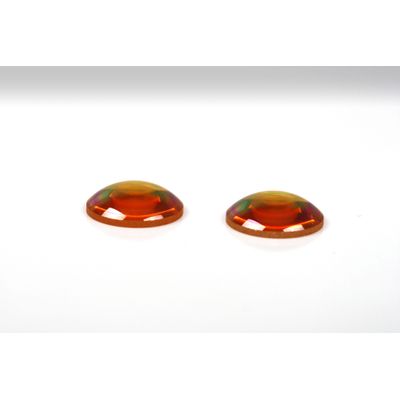

Plano-Convex - Model LZN2531 -Zinc Selenide (ZnSe) Planoconvex Lens

Product Code: LZN2531
Diameter: 25.4 mm (1")
Dimensions: Ø 25.4 mm (1")
Edge Thickness: 2 mm
Center Thickness: 2.4 mm
Center Thickness Tolerance: ±0.2 mm
Diameter Tolerance: ±0.2 mm
Edge Thickness Tolerance: ±0.2 mm
Focal Length: 30.7 mm (10600 nm)
Radius of Curvature: ∞ mm, 214.7 mm
Shape: Round
Substrate: Zinc Selenide
Surface Quality: < 60-40 scratch-dig
Thickness Tolerance: ±0.2 mm
Type of Curvature: Plano-Convex
