ZOGLAB - Model ARTIST -Temperature and humidity plus weather reporter
Large LCD with wide view angle. Ergonomic design. High accuracy measurement. High or low limit alarm. MAX / MIN / AVG query. Weather forecast. Ultra low power design with single Li-polymer battery.Most popular related searches

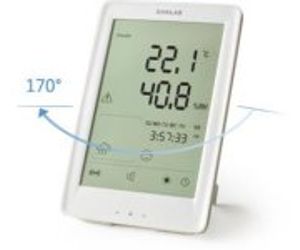

Large LCD with Wide View Angle
Large FSTN technology LCD display with wide view angle, for much more clearer display, user can read easily even under 170°
Artist shows weather states in the next 6~12 hours for an area with the radius of 15km. It`s accuracy reaches about 75%.

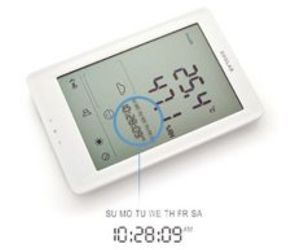

Built-in high accuracy timer, real-time display week, time, date, year,etc.
With the optimized SSD algorithm, Artist can indicate human body feeling status in the environment.
Warning symbol flashes distinctively when high or low limit exceeded.
Out-of-limit alarm mark shows up to remind user to handle the event in time.
Measuring Data
- T Measuring Range: -20?~70?
- T Accuracy: ±0.3?(23?±2?), full scale ±0.5?
- T Resolution: 0.1?/0.2 ?
- RH Measuring Range: 0%~100%RH
- RH Accuracy: ±3%RH(10%~85%RH),other range ±5%RH(Testing Environment 23?±2?),±2%RH(High-precision version)
- RH Resolution: 0.1%RH
- P Measuring range: 500.0~1100.0hPa
- P Accuracy: ±1.5hPa
- P Resolution: 0.1hPa
- Weather Forecast Area: 15km around
- Forecast Time: Next 6~12hrs
General
- Sampling Interval: 5s
- Most Value Period: Within 12hrs
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Interface: Mini USB
- Battery: Li-polymer 1200mAh
- Battery Lifetime: 400days for single recharge(200 cycles for battery life)
- Clock Accuracy: <12 mins/year
- Clock Feature: Auto adjustable
- IP Class: IP50
Sensing Probe
- Model: NTC / RTD / Digital Sensor
General Feature
- Dimensions: 100×151×14.5mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Display Area: 116×78mm
- Weight: 200g
