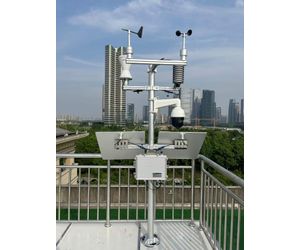

ZOGLAB - Model AWS1600 -Six-parameter automatic weather station
AWS1600 is a professional six-parameter automatic weather station. lt integrates temperature, humidity, ailpressure, wind speed, wind direction, rainfall, and an optional real-time video terminal system, which can meet the needs of meteorological observation in various industries, and can be integrated into the observation network of the National Meteorological Administration, The data format is fully compatible with the current CMA Ground Specifications.
- An automatic weather monitoring system integrating data collection, storage, transmission and management
- Simultaneous measurement of temperature, humidity, wind speed, wind direction, air pressure and rainfall meteorological parameters
Temperature measuring range: -30℃~70℃, -40℃~60℃, -50℃~50℃
Temperature accuracy: ±0.1℃(23℃±2℃), -40℃~60℃±0.2℃
Temperature resolution: 0.01℃/0.02℉
Humidity measuring range: 0%~100%RH
Humidity accuracy: ±2.5%RH (10%~85%), other ranges ±5.0%RH (measurement environment 23℃±2℃)
Humidity resolution: 0.01%RH
Pressure measuring range: 500~1100 hPa
Pressure accuracy: ±0.10hPa(-10℃~50℃); ±0.20hPa(-40℃~50℃)
Pressure resolution: 0.01hPa
Pressure stability: ≤0.2hPa/year
Wind speed measuring range: 0.5~65m/s
Start wind speed:＜0.5m/s
Wind speed conversion characteristic function: U=0.1×R+0.32 (U=wind speed [m/s], R=output pulse frequency [Hz])
Maximum allowable error of wind speed: ±0.5m/s
Wind direction measuring range: 0°~360°(wind speed 0.5~65m/s)
Wind direction start wind speed: ＜0.5m/s
Maximum allowable error in wind direction: Better than ±2° (RS485); Better than ±3° (7-bit Gray code output); Better than ±2° (0-5V analog output)
wind direction resolution: ±0.5° (RS485), ±3° (7-bit Gray code), ±1° (0-5V analog)
Rain gauge water-bearing diameter: 200cm2 (φ159.60±0.6mm)
Rainfall resolution: 0.1mm
Rain intensity measuring range: 0~4mm/min
Maximum allowable error in rainfall: ±0.4mm (≤10mm); ±4% (>10mm)
