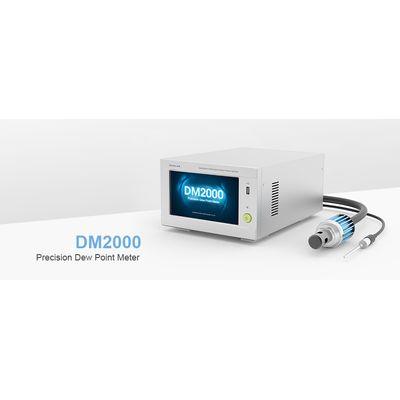

ZOGLAB - Model DM2000 -Precision dew point meter
DM2000 is a precision dew point meter or Chilled Mirror Hygrometer which dew point measuring range -30°C - 90°C, humidity measuring range 2%RH-100%RH. Drift free and precise dew point measurement; temperature measuring accuracy is ±0.1 °C; dew point measuring accuracy could reach ±0.2°C; Robust and durable sensor design, force frost technology. DM2000 adopts humanized design, and could connect with drift free dew point sensor and complete laboratory and industrial humidity measurement. 7 inch TFT touch screen for better user experience. It could support communication via serial, LAN(Ethernet) and USB, etc.; Built-in battery could support continuous work for 8 hours, better for outdoor application, easy to use.Most popular related searches
dew point monitoring
chilled mirror hygrometer
laboratory calibration instrument
dew point sensor
humidity measurement
temperature monitoring
laboratory calibration
calibration instrument
laboratory instrument
dew point mirror
- Measuring accuracy ±0.2℃dp，±0.1℃ Temperature
- Measurement units °C, °F dew point; %RH; °C, °F temperature; g/m3; g/kg; aw; Δ (t – t dew point)
- Resolution Resolution 0.1 for °C, °F and %RH, 0.01 for g/m3 and g/kg
- Response speed 1°C/sec plus settling time (dew point dependant)
- Power supply 100~240VAC 0.5A，50~60Hz
- Battery Lithium polymer battery 14.8V/8000mAh
- Battery life 8 hours
- Analog output 4~20mA
- Communication interface RS232/485、USB、LAN
- Working temperature -20~50℃(Whole device)
- Dimensions 215×133×302mm（w/h/d）(3U, 1/2 size of 19 inch rack )
- Weight 5kg
