Zoglab - Model DSM3700 -Probe Type Temperature Meter
Fully coated with steel, progressive class of IP68. Unique temperature sensing design shortens measuring time. Wide viewing angle for fast and accurate data reading. Super-low current consumption ensures built-in battery to continuously work for 3-5 years. One and only serial number helps to trace it`s own calibrated data.
Most popular related searches
environmental instrument
temperature meter
NTC sensor
thermohygrometer
temperature probe
temperature monitoring
workplace air
Measuring Data
- T Measuring Range: -40?~125? , -100?~200? , -50?~500? , -40?~60?
- T Accuracy: ±0.5?(-25?~85?) Range 1/2/3 , ±0.3?(-40?~80?) Range 1 , ±0.1?(-40?~60?) Range 4
- T Resolution: 0.1?/0.2?, 0.01?/0.02?
General
- Header Working Temperature: -20?~70?
- Air Response Time: 10s
- H2O Response Time: 2s
- Air Stable Time: 600s(MAX)
- H2O Stable Time: 120s(MAX)
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Battery: LS14250
- Battery Lifetime: 5 years
- Clock Accuracy: <12 mins/year
- Clock Feature: Auto adjustable
- Maximum Extrusion Force: 75kg(Vertical Meter Head)
- IP Class: IP68
Sensing Probe
- Model: NTC / PT100 / Digital sensor
General Feature

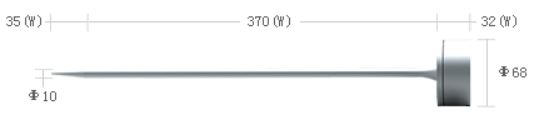

- Dimensions: Φ68×32mm(Meter Head) ,Φ10×405mm(Probe)
- Display: 175° Wide Angle of the LCD panel
- Housing: Non-Rust Steel 316L/304
- Weight: 585g
