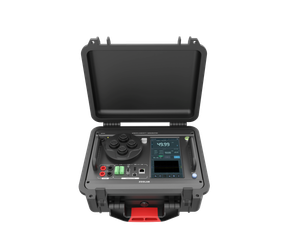

ZOGLAB - Model HG600 -Humidity Generator
HG600 is a portable dual-flow humidity generator, suitable to calibrate humidity sensors in the laboratory or work site.
Based on semiconductor thermostat technology, various humidity environments can be generated within a set temperature range. The built-in pump circulation and stirring fan can quickly respond to the set humidity value, and the stability time is less than 10 min, which can efficiently complete the calibration and verification work.
Humidity control range: 10~90%RH
Temperature control range: 10-40℃
Humidity stability: ±0.2%RH
Temperature stability:±0.1℃ (23℃±2℃), (±2℃ at full scale)
RH accuracy: ±1.0%RH (35~85%RH), ±1.5%RH (rest of the range) 23℃±2℃
Temperature accuracy: ±0.2℃
Humidity uniformity: ±0.3%RH
Temperature uniformity: ±0.2℃
Stability time:＜10mins
Battery life: ≥8 hours
Operating environment -10~40℃, 10%~95%RH (non condensing)
Storage environment -20~70℃，10%~95%RH (non condensing)
Desiccant:75g
Power supply: 100~240VAC 1.3A, 50/60Hz/20VDC
Digital signal interface: RS485/232, USB, LAN, Wi-FI*
Analog signal interface: 4~20mA, 0~1V
Dimensions: 335x290x155mm
Weight: 8kg
Certificates: CE, FCC, VCCI, C-TICK
