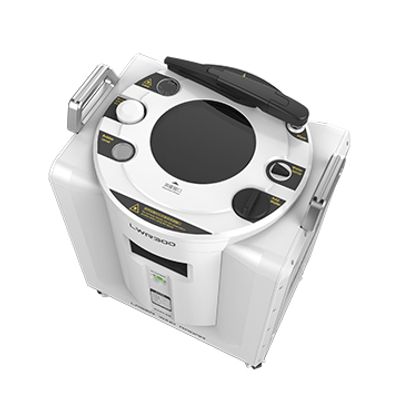

ZOGLAB - Model LWR300 -Laser Wind Radar

        Wind Measurement

• Working wavelength 1550nm
• Height range 30m ~ 800m(Max. 1000m)
• Wind speed range 0.5m/s ~ 60m/s
• Wind direction range 0 ~ 360°
• Wind speed accuracy 0.1m/s
• Wind direction accuracy 2°
• Height resolution Minimum measurement layer at 10m (within detection range or manual setting is supported)
• Time resolution 10s
  Temperature Measurement
• Temperature range -30℃~50℃
• Temperature accuracy ±0.3℃，±0.2℃(5℃~35℃)
• Temperature resolution 0.1℃
  Humidity Measurement
• Humidity range 0%RH~100%RH
• Humidity accuracy ±3%RH (10%RH~90%RH)，±5%RH(90%RH~100%RH)
• Humidity resolution 0.1%RH
  Pressure Measurement
• Pressure range 800hPa~1100hPa
• Pressure accuracy ±0.3hPa(0~50℃)，±0.5hPa(-30~0℃)
• Pressure resolution 0.1hpa

     General

• Working time ≥8h with external power supply, ≥1h with battery
• Power consumption 50~60W
• Power supply 24V DC
• Communication interface RS232/485、USB、LAN、Wi-Fi
• Positioning GPS, BeiDou, GLONASS, Galileo
• Compass Triaxial digital compass, auto north-seeking
• Working environment -30 ~ 50℃
• Storage temperature -50℃～85℃
• Humidity range 0%RH~ 100%RH
• Protective performance rain-proof, salt mist resistance, anti-sand dust, anti-vibration, impact resistance
• Housing aviation aluminum alloy
• Weight 60KG
• Dimensions 550×540×640mm
