ZOGLAB - Model Mini-THCO2 -Data Logger for Temperature Humidity and Carbon Dioxide

SHARE

Large-screen display of temperature, humidity and carbon dioxide, with battery, memory, recording status show together. High precision, mass memory for long-term logging. Free of toxicity and halogen as FDA / HACCP / ISO22000 require. Resistant to water and dust, suitable for cold chain systems of fresh food, fruit, vegetables or wine. Suitable for agriculture research, greenhouse cultivation and other applications.

Most popular related searches
temperature and humidity logger
temperature and humidity probe
cold chain system
infrared CO2 sensor
environmental instrument
flame retardant
CO2 sensor
humidity probe
data logger
IR sensor

Measuring Data

  • T Measuring Range: -30?~70?,-40?~85?(No display)
  • T Accuracy: ±0.5?, ±0.3?(High-precision version)
  • T Resolution: 0.1?/0.2?
  • RH Measuring Range: 0%~100%RH
  • RH Accuracy: ±3%RH(10%~85%RH) / other range ±5%RH(Testing Environment 23?±2?) / ±2%RH(High-precision version)
  • RH Resolution: 0.1%RH
  • CO2 Measuring Range: 0~10000ppm(Customized measuring range)
  • CO2 Accuracy: ±70ppm , ±40ppm
  • CO2 Resolution: 1ppm

General

  • Memory Size: 10,000 / 20,000 units
  • Alarm: High level and low level , Display+beep+backlight , support alarm mark
  • Sampling Interval: 2s?5s?10s?30s?60s?255s
  • Logging Interval: 2seconds~24hours
  • Start with Delay Time: 1~120s
  • Start Mode: Key operation(software could be customized) / Start immediately / Time-lapse start / Timing start
  • End mode: Key operation(software could be customized) / Full / FIFO / Presetting units / Timing end
  • Timing Start / End: Random start / End with format YYMMDD HHMMSS
  • Storage Temperature: -50?~90?
  • ESD Protection: ±25KV
  • Interface: Mini USB2.0
  • Battery: 3.6V lithium battery ×1(Rechargeable)
  • Battery Lifetime: ≥100 hours (with a sample rate of 60 seconds)
  • Software: ANALYSIS 3
  • IP Class: IP64

Sensing Probe

  • Model: IR CO2 sensor + high precision temperature and humidity probe

General Feature

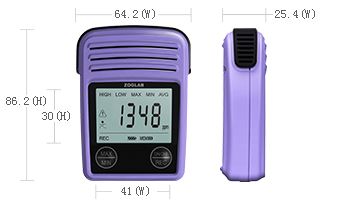

  • Dimensions: 86.2×64.2×25.4mm
  • Display Area: 41×30mm
  • Housing: ABS+PC,flame-retardant,toxicity and halogen free
  • Weight: 96g
