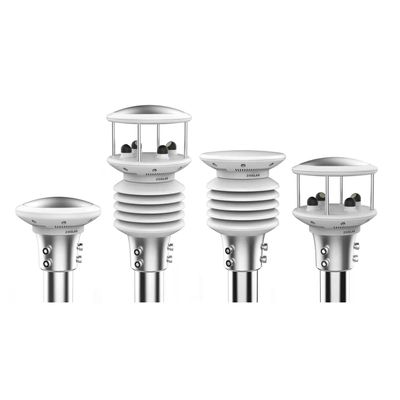

ZOGLAB - Model MWS3000 -All-in-one micro weather station
MWS3000 is a compact all-solid-state micro-weather sensor that supports measurement of multiple factors such as temperature, humidity, air pressure, wind speed, wind direction and precipitation. The overall design adopts the concept of modular, solid-state and digital sensors, which has reshaped the appearance structure of traditional automatic weather stations, and has made great breakthroughs in the protection and durability of the whole machine. The high-strength anti-ultraviolet ABS plastic alloy enables this product to be exposed to outdoor solar radiation for a long time, which brings more convenience to meteorological observation outdoor operations. It can be widely used in meteorology, civil aviation, marine, environmental protection, space research and other fields.Most popular related searches
wind speed monitoring
weather station
automatic weather station
humidity measurement
temperature monitoring
wind monitoring
pressure monitoring
rainfall monitoring
meteorology observation
measurement wind direction
- Temperature measuring range -30℃~50℃
- Temperature measuring accuracy ±0.3℃，±0.2℃(5℃~35℃) （Premium version supports±0.1℃）
- Temperature resolution 0.1℃
- Humidity measuring range 0~100%RH
- Humidity measuring accuracy ±3%RH (10%RH~90%RH)
- ±5%RH(90%RH~100%RH)
- Humidity resolution 0.1%RH
- Pressure measuring range 300hPa~1100hPa
- Pressure measuring accuracy ±0.3hPa(0℃~50℃)，±0.5hPa(-30℃~0℃) （Premium version supports±0.2hPa）
- Pressure resolution 0.1hPa
- Wind speed measuring range 0~50 m/s （Premium version supports75m/s）
- Wind speed measuring accuracy ±0.5m/s(0~15m/s)，±4%(>15m/s)
- Wind speed resolution 0.1 m/s
- Wind direction measuring range 0°~360°
- Wind direction measuring accuracy ±2°(≤±10°)，±4°(＞±10°)
- Wind direction resolution 1°
- Rainfall measuring accuracy Better than 5%
- Rainfall resolution 0.1mm
- UV measuring accuracy ±1.5UV
- UV resolution 0.1UV
- Ambient light dynamic range 128klx
- Ambient light resolution 100mlx
- Communication interface NB-IoT, RS232/485, Bluetooth, WIFI
- Power supply Solar power supply, external power adapter (5~30VDC) power supply
- Operating environment -30℃~50℃，10%RH~95%RH (No condensation)
- Dimensions φ140mm*274mm
- Power consumption <1W (heating 10W)
- Weight 1030g
- Installation height above ground Flexible installation according to the actual situation, ≥700mm above the ground
- Distance from main pole ≥600mm
- Certifications CE,FCC,VCCI,CTICK
