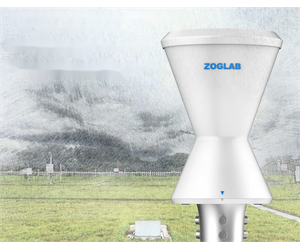

ZOGLAB - Model RG100 -Rain gauge
RG100 rain gauge uses a new generation of tipping bucket technology with a precision ceramic blade design, the measurement resolution can reach to 0.1mm, maximum allowable error is ±0.4mm(≤10mm) . Meanwhile its output signal can directly connect to data collector system through switch signal, RS485, Bluetooth (configured additional wireless module). With the rain collecting area of 200 cm², it can be widely used in areas of meteorology, hydrology, agriculture and forestry. RG100 rain gauge has a small and delicate appearance, with the unique aero-cone design, can reduce the wind effective area and the wind speed influence on precipitation measurement.Most popular related searches
rain gauging
rain gauge
precipitation monitoring
rain sensor
tipping bucket
meteorology instrument
wind speed monitoring
hydrology
- Collecting area 200cm² (φ159.60±0.6mm)
- Resolution 0.1mm
- Measuring range rain intensity: 0~4mm/min; rainfall >0.1mm
- Maximum tolerance ±0.4mm(≤10mm); ±4%(＞10mm)
- Operating temperature 0~60℃
- Output mode
1) Switch signal, current＜0.5A, on-resistance 120 Ω
2) RS485, power supply: 0.5W, 5~24VDC, support AT protocol command - Contact power Max 0.5W, Max: 24VDC
- Pulse width ≥30ms
- Housing aluminum alloy
- Weight 1.3kg
- Dimensions Rain sensor: 185x185x320mm; bracket diameter: φ50mm
- Certifications CE / FCC / VCCI / C-TICK
