ZOGLAB - Model STAMP - Lable Data ...

ZOGLAB - Model STAMP -Lable Data Logger for Temperature and Humidity

Ultra-thin, sticky, support magnetic starting. IP68, waterproof, dustproof. Selectable memory sizes. In compliance with multiple safety standards. RFID wireless technology.

Most popular related searches

temperature and humidity logger

data logger

temperature and humidity sensor

environmental instrument

temperature sensor

humidity sensor

temperature monitoring

waterproofing

temperature and humidity monitoring

humidity measurement

Measuring Data

ST10000 Series (Single temperature)
T Measuring Range: -40?~85?
T Accuracy: ±0.5?
T Resolution: 0.1?/0.2?
ST20000 Series (Temperature and humidity)
T Measuring Range: -40?~85?
T Accuracy: ±0.5?
T Resolution: 0.1?/0.2?
H Measuring range: 0%~100%RH
H Accuracy: ±3%RH(10%~85%RH), other range ±5%RH(Testing Environment 23?±2?)
H Resolution: 0.1%RH

General

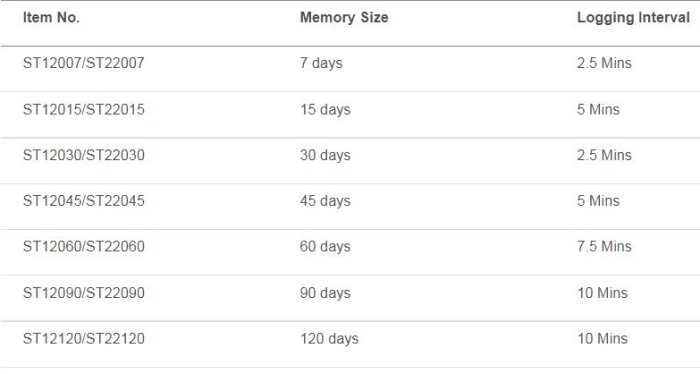

Memory size: 7 / 15 / 30 / 45 / 60 / 90 / 120 days
Alarm: Red / Green LED indicator , High level and low level
Start with Delay Time: 1~120s
Start Mode: Press key to start / Magnetic start / Software configure to start
End mode: Press key to end / Magnetic end / Software configure to end
Storage Temperature: -50?~90?
ESD Protection: ±25KV
Interface: Digital / RF
Battery: CR2016
Battery Lifetime: 2 years (with logging interval of 10 minutes)
IP Class: IP68
Sensing Probe
Model: Digital Sensor

General Feature

Dimensions: 42.8×36.4×4.3mm
Housing: PC
Weight: 10g

Ultra-thin, sticky, support magnetic starting
So small-sized and sticky to be put onto the object while doing no harm to it, STAMP is perfectly for tracing and collecting temperature and humidity data in transit.

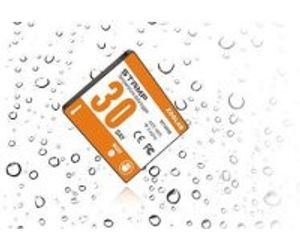

Seal designed makes it completely waterproof and dustproof, so to be used in harsh environment for recording temperature and humidity data.

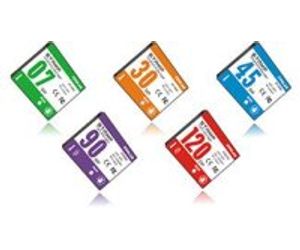

STAMP lable T&TH data logger series are classified based on different memory sizes, 7 days, 15 days, 30 days, 45 days, 60 days, 90 days, or 120 days. User chooses proper STAMP according to transportation time.
