ZOGLAB - Model TL100 -Temperature Data Logger
Economical and recyclable temperature data logger. Mass memory of 30,000 or 60,000 units. Small, light, particularly fit for logging temperature in transit. LED indicators showing record and working status; 2-year battery lifetime. TL100 is a low-cost, small, light and recyclable data logger for transportation.
Small size, low cost
TL100 data logger is especially designed to be small for cold chain cargo.

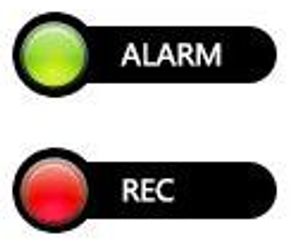

Record and alarm status are directly shown via indicators
The only existing button to start / stop recording or to clear recorded data.
TL100 temperature data logger is strictly designed and manufactured according to the requirements of CE, FCC and RoHS.

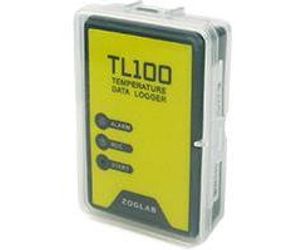

A transparent PP sheath matches with each TL100 temperature data logger for better water-proof.

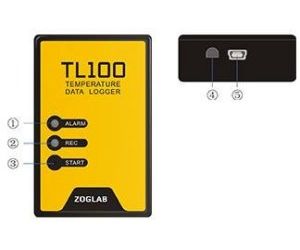

Product Description
- Alarm indicator
- Record indicator
- Start / End key
- Temperature sensor
- USB interface
Measuring Data
- T Measuring Range: -30?~70?
- T Accuracy: ±0.5?
- T Resolution: 0.1?/0.2?
General
- Memory Size: 30,000[Yellow] / 60,000[Green] / 450,000[Purple] / 900,000[Red]
- Alarm: Red/Green LED indicator , High level and low level , Record status / High or low temperature / Low battery
- Logging Interval: 2seconds~24hours
- Start with Delay Time: 1~120s
- Start Mode: Key operation / Start immediately / Delay start
- End mode: Key operation / Full / FIFO
- Storage Temperature: -50?~90?
- ESD Protection: ±25KV
- Interface: USB 2.0
- Battery: 3.6V lithium battery ×1
- Battery Lifetime: 2 years
- Software: ANALYSIS 3
- IP Class: IP64
Sensing Probe
- Model: NTC / Digital Sensor
General Feature

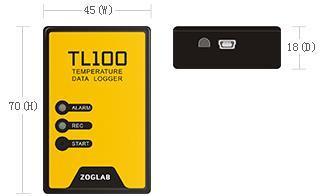

- Dimensions: 70×45×18mm
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Weight: 48g
