ZONEL FILTECH - Model S.S. -Single Bag Filter Housing - Side In
General introduction: The side in stainless steel bag filter housing with the construction of side inlet and bottom outlet, that design makes the filter housing very easy to wash; optimized design on bag fixing and sealing, screw tight filter house cap makes the liquid filter bag with a perfect performance even under the high pressure.
a. The stainless steel bag filter housing with side inlet and removable cap, the solution won`t spillover when opening the filter housing.
b. The Liquid filter housings with screw tight, no need special tools to operate.
c. The SS filter housing with stable and adjustable supporting shelf, easy to installing.
d. The SS bag filter housing with the optimized sealing solution, without leakage under high pressure.
e. The Stainless steel filter housing with sound polishing treatment and supporting cage, well protect the filter bags, easy to wash.

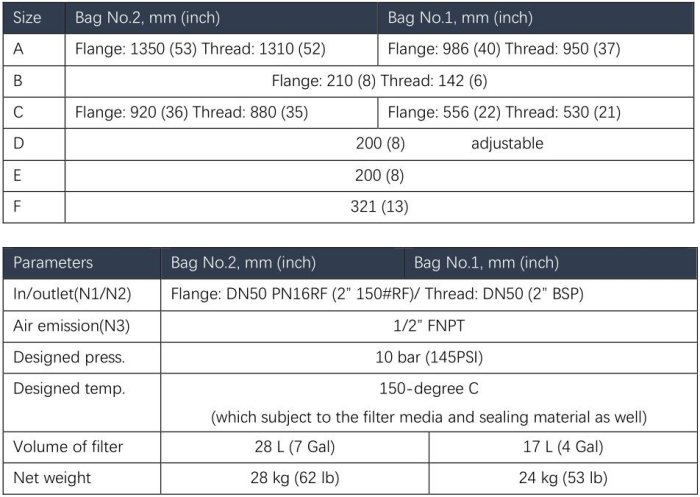

- Qty of the filter bag: single
- Bag size: No.1, 2, 4
- Connection size: DIN/ANSI/BSP/NPT
- Material: SS 304/SS316
- Sealing ring:
- Buna N/EPDM/Viton/Silicon/ FEP+FPM
Max. flow: 40 CBM/hr
(note: testing filter house size: No.2, the actual flow will subject to the filter media and the properties of the solutions as well)
Design operation temperature: 150 degree C.
Designed pressure: 10 Bar.
a. Painting
b. Electronic industries
c. Electrolyte
d. Silica industries
e. Fine chemicals
f. Paper production
g. Food industries
