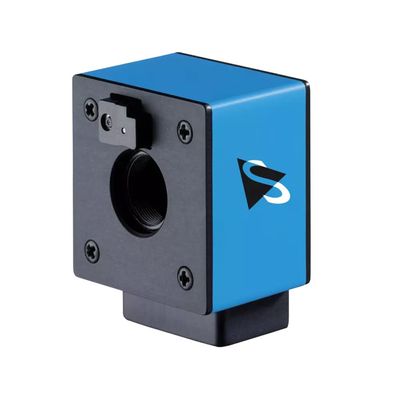

Imaging Source - Model DMK AFUX236-M12 -Zoom Autofocus Camera

General Behavior

• Dynamic Range: 8/12 bit
• Video Formats @ Frame Rate (maximum): 1,920×1,200 (2.3 MP) Y800 @ 54 fps
• 1,920×1,200 (2.3 MP) Y16 @ 27 fps

Interface (Optical)

• Sensor Type: CMOS
• Sensor Specification: Sony IMX236LLJ
• Shutter: Rolling
• Format: 1/2.8 inch
• Pixel Size: H: 2.8 µm, V: 2.8 µm
• Lens Mount: M12x0.5 (motorized mount)

Interface (Electrical)

• Interface: USB 3.0
• Supply Voltage: 4.5 VDC to 5.5 VDC
• Current Consumption: Approx. 250 mA @ 5 VDC
• Auto-Iris Control:
• Trigger:
• I/O:

Interface (Mechanical)

• Dimensions: H: 36 mm, W: 36 mm, L: 30 mm
• Mass: 70 g

Adjustments

• Shutter: 15 µs to 30 s
• Gain: 0 dB to 36 dB

Environmental

• Temperature (Operating): -5 °C to 45 °C
• Temperature (Storage): -20 °C to 60 °C
• Humidity (Operating): 20 % to 80 % (non-condensing)
• Humidity (Storage): 20 % to 95 % (non-condensing)
