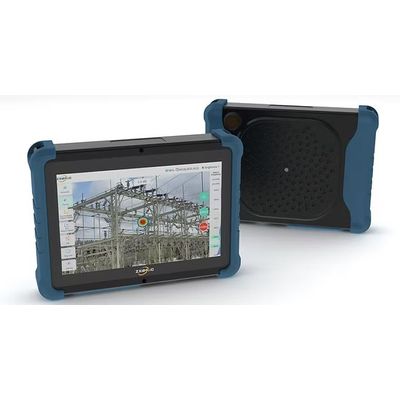

Zxonic - Model ZX5000 -Acoustic Imaging Camera
Acoustic Specifications: Microphone Array: 64, 72, 128, 144 channel MEMS Micophone. Frequency Range: 2 kHz to 65 kHz. SPL Range: 20 to 120 dBA. FFT: Yes. Minimum Detectable Leak: 2.5 bar 0.6L/min at (3meters). Test Distance: 0.3 to 120m.
Most popular related searches
- Dynamic Image Resolution: 1.3 MP (4224 x 3136)
- Captured Image Resolution: up to 13.2 MP (4224x3136)
- Focal Length: 3 mm
- Aperture: 2 ± 5%
- Shooting Range: 0.1m→∞
- Field of View: 77.6°
- Image Transfer Rate: 6 Hz to 64MHz
- LED light: 1 at 1 Watt (color temperature 5000k-7000k)
- Type: Capacitive touchscreen
- Size: 10.1 inch
- Resolution: 1280 x 800
- Screen Brightness: 250 nit
- Screen Refresh Rate: 60Hz
- Battery type: INR 21700 3S (11.1V nominal)
- Battery capacity: 5000mAh (4 hours of continuous working)
- Battery Life Cycles: ≥ 500 cycles @ ≥ 70% remaining capacity
- Recharge Time: 2 hours
- Data Storage: up to 144 GB (16 GB internal )
- Data Format: JPG, MP4
- Video Length: no limit
- Wifi: 802.11ax/ac/a/b/g/n
- IP Rating: IP56
- Start-Up Time: < 30 s
- Audio Recording: Yes
- Operating Temperature Range: -10 °C to 40 °C
- Operating Humidity Range: 20 % to 90 %
- Operating Atmospheric Pressure: 65 kPa to 108 kPa
- Weight: < 2 KG or 4.4lbs
- Dimensions (mm): 270×195×50
- Warranty: 2 years
- Language: English
- USB-C1: USB 3.0 for charging
- USB-C2: USB 2.0 for data export, USB sensor
- USB-A: USB 2.0 for data export, USB sensor
- TF Card Slot: External storage
- Tripod Threaded Hole: Tripod standing
