Cube-R - Complete Turnkey Solution for Automated Quality Control
The complete turnkey solution for automated quality control. Three easy steps for a perfect match.
Choose your configuration

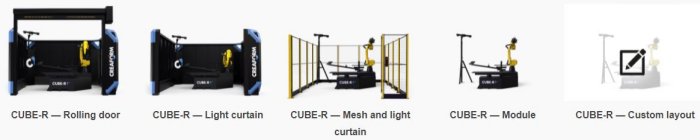

The first choice for configuring the CUBE-R is the type of safety enclosure and layout. Five options are offered depending on the level of integration required for the measurement cell: completely turnkey or only the main components (3D scanning solution, turntable, VXscan-R), which are usually intended for robot integrators. The footprint available can also guide your decision-making since the rolling door option provides minimal footprint. A custom layout of the CUBE-R components can also provide a flexible option.
Choose your payload

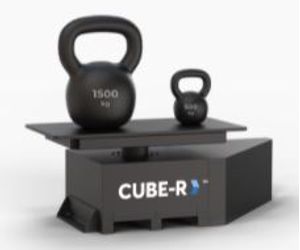

The second choice for configuring the CUBE-R is to select the maximum payload of the turntable, either 500 kg or 1500 kg (1,102.31 or 3,306.93 lb).
Add the optional asset protection

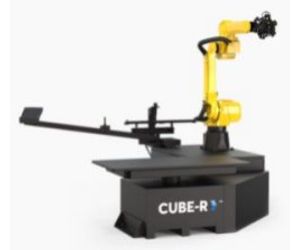

The third and last choice for configuring the CUBE-R involves asset protection. Asset protection combines both hardware and software features. Hardware options include a pneumatic tool changer and a swing arm to load calibration artefacts automatically. Software options include robot logic in the controller to verify that all of the calibration artefacts are stored correctly when the 3D scanning occurs. It also uses the C-Track as a vision system to verify if the right part is loaded at the right location. This option also comes with accident coverage for the first year.
