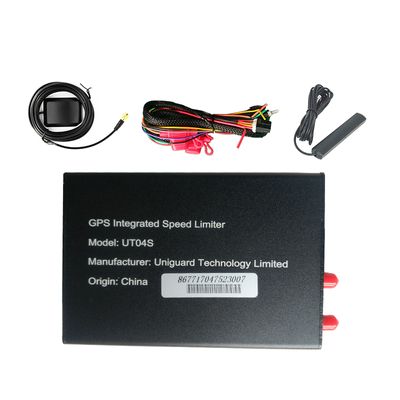

UniGuard - Model UT04S -Ethopia GPS Speed limiter

SHARE
Description: Uniguard GPS speed limiter UT04S ●Speed Limiter Enforce to limit the speed of your wehicle if preset maximum speed ●Vlolations alarm All violations will be transmitted to platfom. ●Over speed alarm When vehicle reaches 95% of preset speed limit. bul-in buzzer shall make sound alarm to warn driver. ●Tamper proor Maximum speed is 401km/h if maximum speed tampered or sensor is cut ●Download data Data can be stored for 72 hours at interval of 5 seconds. Data can be retrieved by connecting device to computer via USB data port. ●Fuel monitoring (optional) Monitor vehicle fuel consumption. Need connect with fuel sensor that gives out analog voltage. Real time fleet trackng Working power: 2W ●Bluetooth Printer Violations can be printed out for the last one-hour driving. Portable printer prevents drivers from printing. Speed violations can be printed.
Most popular related searches
alarm reporting
harbor monitoring
sensor data

Specs:

Name: UT04S GPS Speed limiter

Weight: 191g

Dimension:  110*75*30 mm

Working voltage:  DC 9V-36V

Backup battery:  800mAh 3 7V

Battery working time:  12hrs

Working current:  42mA/12V

Standby current:  16mA

Charging current:  Max< SOOmA

Input Fuse:  2A

Working power:  2W

Working Temp:  -45-85'C

GSM Frequency:  850/900/1800/1900 Mhz

Max RF output:  33 OdBm32dBm

Dynamic input range:  -15 - -102dBm

GPS chipset:  Ublox 7

GPS frequency:  Ll, 1575 42 MHz

GPS accuracy:  5 meters at 2D RMS

Interface

            1 A/D Port for fuel monitoring

            1 Interface for data config by PC

            1 USB port for USB disk data download

            2 Port for speed limit

            1 Input for speed signal

            1 Input for Bluetooth Printing control

Built in Flash: Store data of last 72hrs, above 5000 points

Built in Buzzer: Sound alarm when speed reaches 95% of set value

Alarm: External power cut, Lower battery, Over speed, Geo-fence

Tracking method: Real time on Web Software and Phone APP

Account level: Unlimited sub account management

Report:

     Trip report, Speed report, Geo-fence report, Parking report, Driving Report, Alarm report, Mileage

report, Engine Idle report
