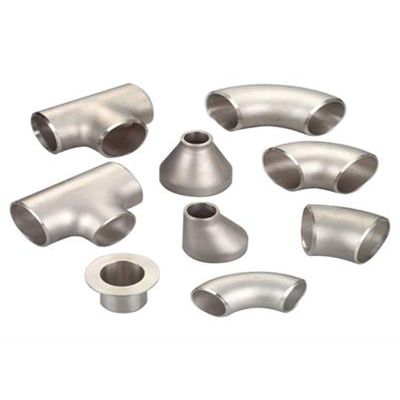

KCM Special Steel - Model monel 400 -Nickel Alloy Monel 400 Pipes And Fittings

Nickel Alloy Monel 400 Pipes And Fittings is a copper-nickel alloy excellent corrosion resistance, in a variety of media has good corrosion resistance, good welding performance, high strength and moderate, the alloy has been widely used in a variety of occasions in salt water or sea water Has excellent resistance to pitting corrosion, stress corrosion resistance, especially resistant to hydrofluoric acid and anti-hydrochloric acid. Widely used in chemical, petroleum, marine industry.

Nickel Alloy Monel 400 Pipes And Fittings at home and abroad corresponding grades:


USA
UNS
Germany
SEW VDIUV
UK
BS
France
AFNOR
Monel 400
N04400
W.Nr.2.4360
NiCu30Fe
NA 12
Nu 30
Nickel Alloy Monel 400 Pipes And Fittings Delivery Specifications:
Round bar, bar, strip, pipe, seat, spheres, flanges and forgings

Nickel Alloy Monel 400 Pipes And Fittings Chemical composition:
Alloy
C
Mn
Si
S
Ni
Cu
Fe
Monel 400
≤0.30
≤2.00
≤0.50
≤0.024
≥63
28.0～34.0
≤2.5
Nickel Alloy Monel 400 Pipes And Fittings Physical properties:

Density
8.83g/cm3
Meltion Point
1300-1390℃
Nickel Alloy Monel 400 Pipes And Fittings at room temperature alloy of the minimum mechanical properties:
Alloy
T S
Rm N/mm2
 Y S
RP0.2N/mm2
Elongation
A5 %
Brinell hardness

HB
Monel400
480
170
35
≥331
Nickel Alloy Monel 400 Pipes And Fittings mechanical properties (high quality bar)

Item
Status
σЬ/ MPa
σ0.2/MPa
δ5 /%
Bar
Rolling bar
760
585
8
Forging bar
585
380
10
Pipe fittings
Annealing
483
83
40
To Stess
586
207
15
