Production Engineering Services

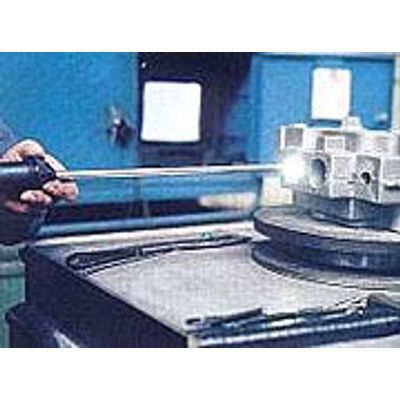

Measuring and testing: Chemical, mechanical and metallurgical laboratory. Magnetic crack detector, penetration testing crack detector, endoscopy, ultrasonic and X-ray testing, dimensional testing of unmachined parts and assembly units.
Most popular related searches
- Secondary treatment/processing
Thermal & surface treatment
Mechanical workshop - Quality approval associations
Bureau Veritas, Deutsche Bahn, Germ. Lloyd, Lloyd’s Reg. Of Shipping, TÜV - Additional services or facilities
Construction and material consultancy

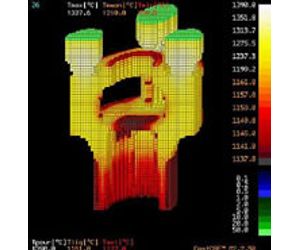

Model, mould-making and tool manufacture, finite elements calculations, air-setting simulation. - Moulding box sizes for repetition casting
700 x 600 x 250/250 mm
1100 x 900 x 400/400 mm - For small-lot and individual production
up to 3000 x 3000 x 1500 mm - Weights / dimensions
Gray cast iron casting up to 6000 kg each
Nodular graphite iron up to 5000 kg each
Steel castings up to 4000 kg each
