Research and Development Services

Our turbine’s hydraulic design rests on the following procedure:

• Resizing, simplifying, and adapting the hydraulic technology of large turbines
• Bench testing
• Gauging the impact of adaptations and simplifications in order to optimize fabrication performance/cost ratios.

In order to respect the criterion of simplicity, the machines offered are designed so that the largest possible numbers of elements are standard, or can be supplied by non-specialized sub-contractors. This approach favors the construction of hydro-mechanical equipments in the vicinity of the construction site.
The machines offered reach a mechanical efficiency of the order of 90%, guaranteed by test results and their corresponding certificates. Thus, the Project owner is both freed from on-site performance tests, and is given the necessary information to determine with certainty, before-hand, the profitability of his project.
Developing ranges of machines in the laboratory warrants that performance specifications are respected. This avoids the inevitable damages, both to operator and constructor, when guarantees are not respected.
The results of this research are at the disposal of whoever asks for them, with no exclusivity. In compensation, the customer is asked to participate in the development costs of the type of machine in consideration, and in any tailoring he may require.
On the basis of data given by the customer, the laboratory supplies all the information required to build the machine. In particular:

• The type of turbine.
• Efficiency and mechanical power curves function of discharge.
• Nominal and runaway speed of rotation.
• Forces on the runner and buckets
• Maximum suction head, for reaction turbines.
• Complete hydraulic profile of the turbine and its runner.

Reliable, practical, high performance

Mhylab`s foundation which is independent of all manufacturers or companies has, for close to 20 years, been developing a range of hydraulic turbines which covers a very wide scope of applications:

• Heads: from 1.5m to over 700m
• Discharges: from 10l/s to 10 m³/s
• Powers: from 20 kW to 4 MW

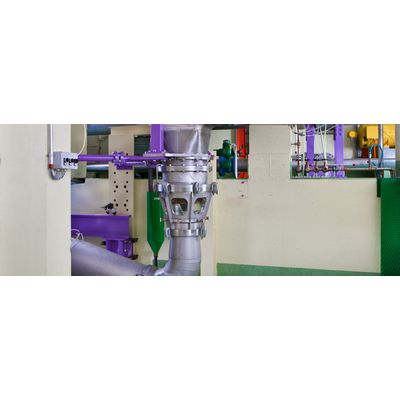

In order to develop its turbines and validate their operation and performances, the Foundation uses a test-bench in Montcherand with allows it to test its various types of machines under real conditions.

Mhylab’s work rests on the systemisation of hydraulic profiles. This ensures the use of a simple and efficient method, adapted to the characteristics of each site. On the basis of its developments, Mhylab can supply turbine plans as well as the full guarantees that the future operator has the right to expect.
Mhylab offers a concept having the following key elements:

• Low construction costs (compared to classical solutions)
• Guaranteed high efficiency
• Faultless hydraulic functioning (ex. absence of cavitation)
• Optimal machine operation
• Maximum reliability, resulting in low operation costs

In 2012 the Foundation has celebrated the commissioning of the hundredth plant using Mhylab technology.

Projects` examples realized with the following turbines` types:

• Pelton
• Axial
• Siphon
• Diagonal
