LUNA - Version 3DViz -3D and 2D Visualization Software for Sensor Data Visualization
The 3DViz software is a tool designed for the graphical visualization of strain and temperature data from an ODiSI system. Users can load an .stl or graphic file of the test subject, apply fiber optic sensor routing onto the model or image, and visualize color-coded temperature or strain data on the 3D model or 2D image. This software allows real-time mapping and display of sensor data from the network-connected ODiSI 6000 Series system or can replay previously acquired data. Additionally, it facilitates the creation of videos to illustrate the progression of strain and temperature over time, offering greater insight into design evaluations. This aids in understanding the materials, components, structures, or processes involved. The software includes a fully functional version available for a 30-day free evaluation, allowing for thorough examination before committing to a purchase.

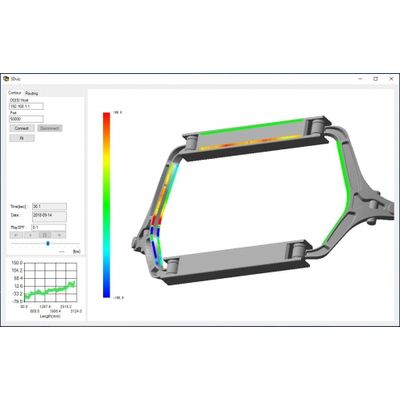

The 3DViz software provides intuitive 2D and 3D visualization of high-definition sensor data. The software allows strain or temperature data from an ODiSI system to be visualized directly on a 3D CAD model or a 2D image.
The 3DViz software provides graphical visualization of strain and temperature data acquired by an ODiSI system. Simply load an .stl or graphics file of the test article, map the fiber optic sensor routing onto the model or image, and then view color-coded temperature or strain data directly on the image or 3D model.
ODiSI strain and temperature data can be mapped and displayed in real time, by subscribing to sensor data streaming from a networked ODiSI 6000 Series system. Alternatively, ODiSI data can be loaded and replayed from a previously acquired ODiSI data. The sensor data visualization software can create videos of the evolution of strain and temperature over time to provide greater insight into designs.
- Easily interpret and understand complex data
- Visualize large data sets using contour and 3D or 2D mapping
- Visualize live measurement data in real time or play back logged data
- Try software with 30-day trial evaluation
- Compatible 3D model files : .stl files
- Compatible 2D image files : .bmp, .png, .jpg, .jpeg, .tif, .tiff
- Connection to ODiSI system : Ethernet TCP/IP
- Data playback : ODiSI 6000 data files
- OS Compatibility : Windows 7.1, 8, 10
