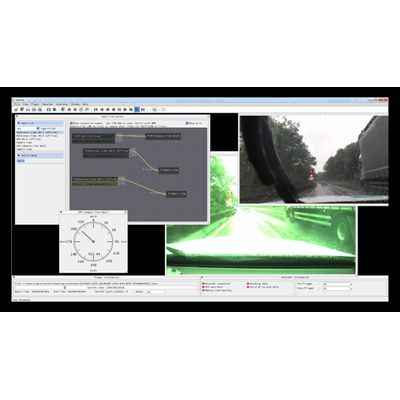

AVETO.app - Visualization of Multi Sensor Data Software
AVETO.app Developer software is the optimized visualization for cognitive sensors. This software enables the display of sensor data (e.g. camera, radar, 3D sensors) and parallel to this the corresponding vehicle buses or Ethernet. The typical application area is the validation of sensor systems in the ADAS area. As a software package, AVETO.app Developer fits ideally into the tool chain from sensor to measurement technology and back and is perfectly matched to the b-plus hardware components for sensor data acquisition with MDI, measurement technology platform with BRICK and reinjection with b-HiL.
- Time-synchronous display of different sensors and bus data
- Adaptable to individual requirements
- Framework optimized for high data rates
- Graphical configuration
- Flexible, component-based plug-in system (measurement objects)
- views
- processing
- data sources
- Powerful 64-bit framework for multi-core use
- Integrated in a complete toolchain for measurement data acquisition, logging and replay or re-injection
The intuitive and simple configuration of the individual Measurement Objects (MOs) is performed via the Configuration Manager. These configurations can also be changed "on the fly" without compilation. Several standard Measurement Objects are available for this purpose.
In addition, you can add individual MOs via the SDK (Software Development Kit), for example to integrate your own development environments, create your own visualizations or integrate any user code. This also makes it very easy to display configuration parameters at user level.
-
Templates and code examples for measurement objects are available for different tasks:
- Data Source Object:
Defines the source of data streams, e.g. MDILink, CAN-Card, camera, lidar, etc. - Visualization Object:
Enables visualization of data, e.g. point cloud, video, bus communication, etc. - Translator Object:
Used to convert data structures to other representation, e.g. sensor specific source data according to harmonized struct definition. - Processor Measurement Object:
Maps data processing according to your implementation, e.g. integartion of your SDK, application, or simply your own recorder trigger, etc. - Exporter Object:
Export of data, e.g. video export to an .avi file.
Based on the recording files, AVETO.app Developer configurations can be executed both live and offline.
