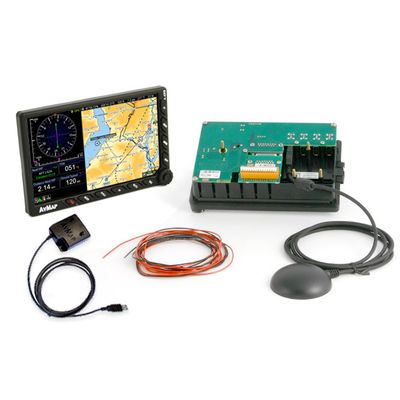

AvMap - Version EKP V -Avionics Display System with A2 ADAHRS and Docking Station

SHARE
The EKP V Avionics Display System by AvMap features a bright 7-inch display that is fully viewable in sunlight and includes an integrated battery and GPS. With a thickness of only 0.8 inches, the EKP V serves as a centralized display for both navigation and primary flight information, providing all necessary details in one compact device. The system’s Cockpit Docking Station acts as the central hub for all electrical connections in the integrated avionic system, hosting the EKP V. Additionally, the AvMap A2 ADAHRS module offers Air Data, Attitude, and Heading Reference, connecting to the aircraft's Pitot-static system and the docking station via USB. This module includes solid-state gyros, accelerometers, magnetic field sensors, and air data sensors and can be installed in various orientations. The AvMap Avionics System is ideal for light sport, ultralight, and experimental aircraft, supporting multiple configurations for varying cockpit space and budget requirements. This scalable system, weighing only 859 grams for the entire setup, ensures ease of installation and a vibratory proof connection to the aircraft's electrical system.
Most popular related searches
avionic system
air sensor
sensor data
magnetic sensor
accelerometer sensor
field data
solids containment
accelerometer
weighing system
compaction system
The AvMap avionic system consists of:
  • AvMap EKP V: GPS navigator, EFB, PFD
  • AvMap Cockpit Docking Station
  • AvMap A2 ADAHRS module
  • AvMap GPS receiver
The system can be connected with third party instruments and accessories:
  • Collision avoidance systems
  • Autopilots
  • Video cameras
  • Weather receivers*
* Function Available in North America only.

EKP V

A brilliant fully sunlight viewable 7” display, with built-in battery and GPS, only 0.8” thick. A centralized display for both navigation and primary flight information. All you need in a single device.

Cockpit Docking Station

It mechanically hosts the EKP V becoming the hub of all electrical connections of the integrated avionic system.

AvMap A2 ADAHRS

A compact module providing Air Data, Attitude and Heading Reference. It connects to the aircraft Pitot-static system and to the docking station via USB and provides information that are displayed on the EKP V LCD. A2 ADAHRS  contains solid-state gyros, accelerometers, magnetic field sensors and air data sensors.  The module can be installed in any orientation.

AvMap A2 ADAHRS

A compact module providing Air Data, Attitude and Heading Reference. It connects to the aircraft Pitot-static system and to the docking station via USB and provides information that are displayed on the EKP V LCD. A2 ADAHRS  contains solid-state gyros, accelerometers, magnetic field sensors and air data sensors.  The module can be installed in any orientation.
