- Version Inspect Pro Control Z - Optimizing Zinc Yield Based On Infrared Camera Data Software

0

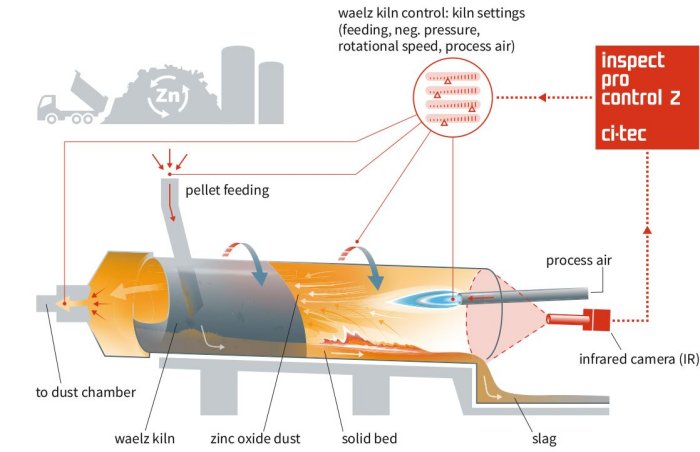

The inspect pro control Z system processes image data from infrared cameras which can visualize deep into the rotary kiln past the ames. It filters out disturbances, calculates the necessary characteristics of the recycling process, and optimizes the combustion process.

Process optimization for manual and automatic control systems

The innovative inspect pro control Z so ware system is based on research conducted at the Karlsruhe Institute of Technology. It has been further developed and implemented successfully all around the world since 2000.

It calculates the required characteristics and uses them to constantly optimize control of the recycling process. An optimum temperature distribution leads to enhanced efficiency and a higher zinc yield. At the same time, slag deposition inside the rotary kiln is reduced, which decreases the need for maintenance.

The inspect pro control Z system can be used to retrofit all standard waelz kiln plants. A high pro tability of the system is ensured by reduced coke consumption, higher metal yield, and extended service life as a result of reduced slag deposition.
