Insitu - Version cGCS -Common Ground Control Station Software

Small footprint

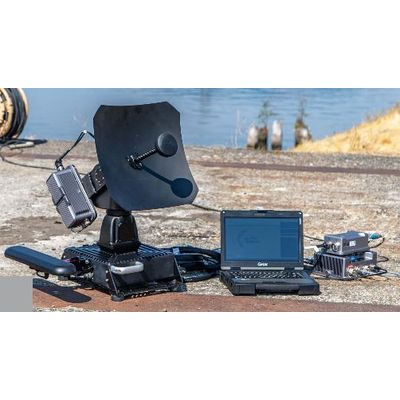

Operate from a laptop with short, medium, and long-range options including vehicle- and tripod-mounted antennas.

Open Systems Design
Open architecture and fully supported Software Development Kit (SDK). Controls all Insitu platforms as well as non-Insitu UxS.

Expeditionary
Small and lightweight, requiring only a 1-person carry. Pack in and pack out quickly, and fly from stationary or moving platforms.

Software/Hardware Support

• I-MUSE, INEXA (fmr. ICOMC2) / INEXA 9.x
• Insitu & STANAG 4586 compliant aircraft/UxS.

Operational Range Configurations

• Short-range antenna: >16 km (8.5 nm)
• Medium-range antenna: 78 km (42 nm)
• Long-range antenna: 130 km (70 nm)

Radio Options

• Silvus StreamCaster

Frequency Bands

• S-band, C-band, L-band
• SATCOM PLEO

Industry-Standard Protocols and Hardware

• STANAG 4586, 4609, 3607
• IEEE 802.3ab (1000BASE-T Ethernet)
• Motion Imagery Standards Board (MISB)
• Cursor on Target (CoT)

Power and Comms

• Power input: 20-35V DC
• Max RF output: 10 W
