Particles Plus - Dashboard for Core Instruments

SHARE

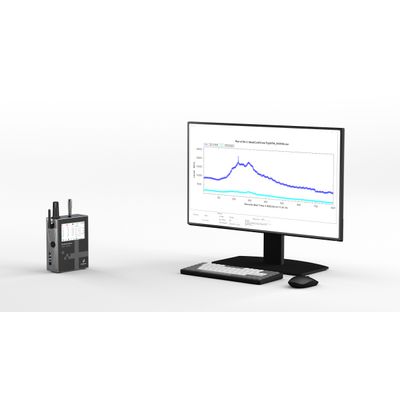

Particles Plus® ModBus DashBoard software is provided free of charge for use with Particles Plus 5000, 7000, and 8000 Series particle counters. It is intended to provide a simple means of monitoring and logging data from one or more of these particle counters via the Modbus protocol. The ModBus DashBoard uses a tabbed interface design in order to maximize productivity. The tabs are modeled after meticulous research in order to make the end-user experience as optimal as possible, providing an easy to configure and setup interface. Users can monitor and manage up to 35 instruments. Instruments can be connected using the existing network over TCP/IP, RS-232, or RS-485 interfaces.
Most popular related searches
particle counter
field data
interface monitoring
well screen

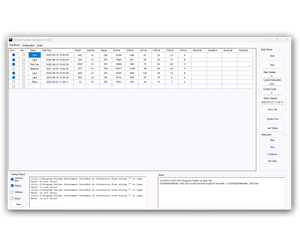

The ModBus DashBoard allows users to monitor simultaneously up to 35 instruments. The software will display the status and selected data for each instrument. It can also log data from each instrument to a .csv file for archive or analysis.

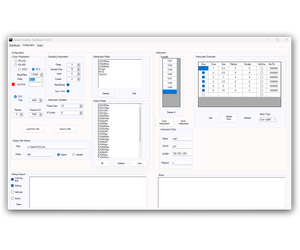

The software supports ModBus communication over RS-232, RS-485 or TCP (Wired or Wi-Fi), though at present all instruments connected to this software have to share the same connection method. Likewise both Modbus RTU and ASCII modes are supported, though all instruments have to share the same communication mode as well.

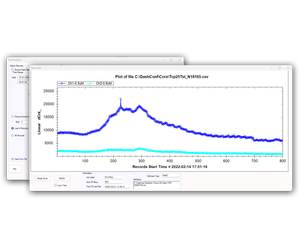

Users can select data fields and a data range for the selected instrument and retrieve that data and plot it for immediate analysis. This provides a quick and simple means of viewing instrument data.
