Rion - Version AS-60 -Data Management Software
Rion AS-60 software provides a really quick and intuitive means of reviewing and analysing logged data from Rion NL-Series sound level meters including the new NL-52/42. It’s especially useful when you have audio data because it displays file icons for the audio recordings upon zoomable level-time graphs of the survey data. It’s really quick and easy to review long-term survey results and you can investigate noise events and/or periodic recordings very quickly.
AS-60 is a huge improvement upon earlier Rion software. In particular the data importing is now quicker and far more intuitive – simply drag and drop files into AS-60. You can also review, synchronise and analyse data from up to 8 sets of results simultaneously. AS-60 can also generate flexible weekly and daily reports which can be easily exported to Excel™.
It’s not essential to use AS-60 to download data from the NL Series (the comma delimited text files can be opened directly into Excel™). It’s just that AS-60 is a really efficient way of managing and reviewing the data as well as carrying out a host of really practical analysis functions that would be tedious and time-consuming using spreadsheets.
- Simply drag and drop folders containing audio and data into AS-60 software

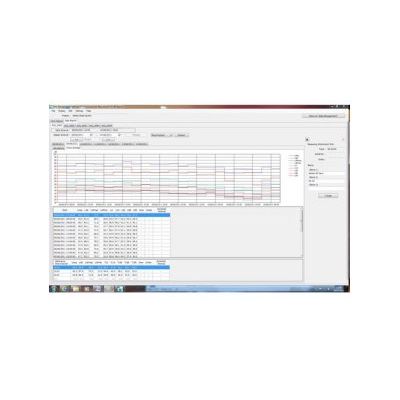

- Synchronised level data and audio file icons displayed on level time graph
- Choose and play audio files directly from the display
- Intuitive zoom feature based on overview of the full survey data for detailed selection of time periods or events
- Flexible and intuitive data display options really help you evaluate the data quickly and easily
- Works with Auto 1 (100msec, 200msec or 1 sec samples) or Auto 2 data from NL-2x and NL3x meters
- Works with simultaneously measured 100 msec data and processed data from NL-52/42
- Data from up to 8 sets of results can be synchronised, reviewed and reanalysed simultaneously
- You can download a demonstration version of AS-60 from:-http://svmeas.rion.co.jp/software.aspx
