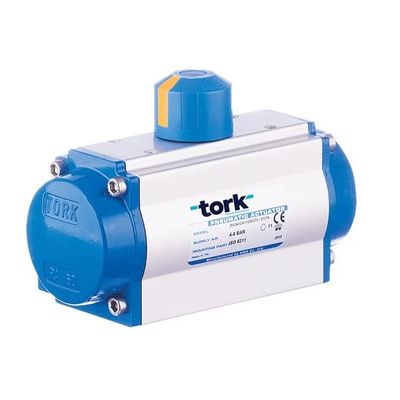

SMS-TORK - Version DA Series -Double Acting Pneumatic Actuators

Application: Ball valve, butterfly valve, dampers on-off/proportional control, medical application (mask production, ventilatory devices etc.). Size: RA 40DA...RA 350 DA
Supply Pressure: 4-8 bar. Output Torque Value: 9 Nm...5162 Nm (6 bar) torque value
Body: Extruded alümunium. Caps and Pistons: Extruded alümunium. Temperature: -10 ºC...80 ºC. Valve Connection: ISO 5211 standard. Limit Switch Connection: Namur standard, VDI/VDE 3845. Positioner Connection: Namur standard, VDI/VDE 3846. Solenoid Valve Connection: Namur standard, VDI/VDE 3847. Stroke Adjustment: Both direction open and close positions ( +,- 5). Accessories: Switch box, positioner, manuel override.
